SKU: PHR-1

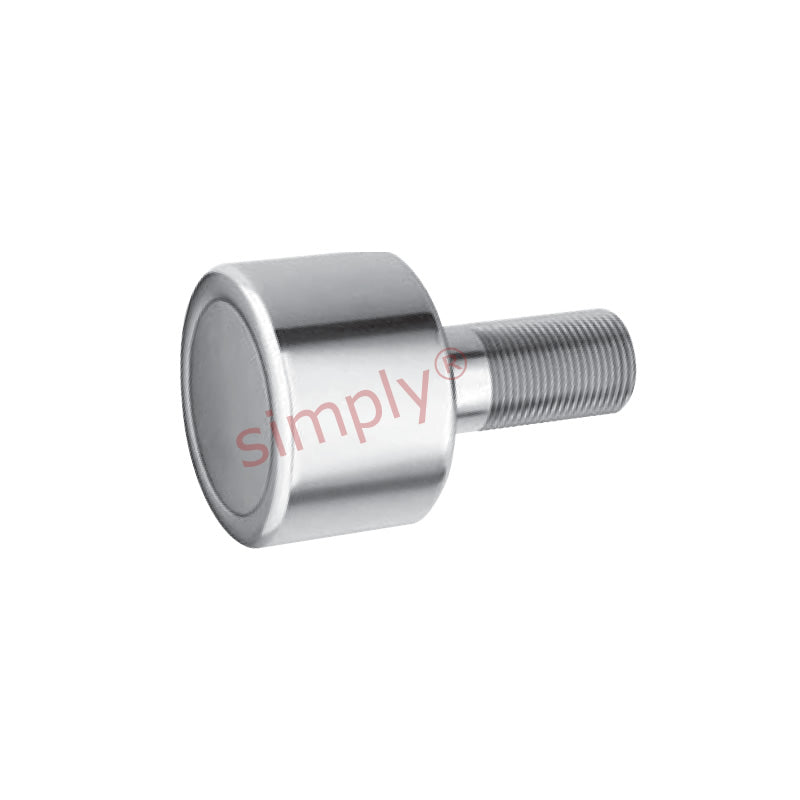

Major Brand PHR1 Hex Head Plain Hi-Roller Bearing 1 inch Outside Diameter
Major Brand PHR1 Hex Head Plain Hi-Roller Bearing 1 inch Outside Diameter
Regular price
CHF 80.00
ex VAT
Regular price
Sale price
CHF 80.00
ex VAT
Equivalent to: PHR-100-A PLR-1 PCF-1
In stock
Price Break
3+
CHF 63.66
4+
CHF 60.08
9+
CHF 59.37
19+
CHF 58.65
29+
CHF 57.94
39+
CHF 57.22
49+
CHF 53.65
59+
CHF 52.93
249+
CHF 52.22
499+
CHF 51.50
999+
CHF 50.07
Description
Description
|
Plain Hi-Roller Bearing: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. Benefits: Ideal for use in environments where dust or high moisture is present. |
Equivalent: PHR-100-A PLR-1 PCF-1
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 25.4mm = 1 inch
- Width:
- 19.84mm = 0.781 (25/32) inch
Technical
Technical
| A | 1 inch |
|---|---|
| B | 0.781 inch |
| C | 0.4375 inch |
| D | 1 inch |
| E | 0.5 inch |
| Thread class 2A F | 7/16-20 UNF |
| G | 0.5 inch |
| S | 0.031 inch |
| Basic dynamic rating | 630 lbs |
| Dynamic thrust load rating | 140 lbs |
| Max static capacity | 230 lbs |
