SKU: PHR-2

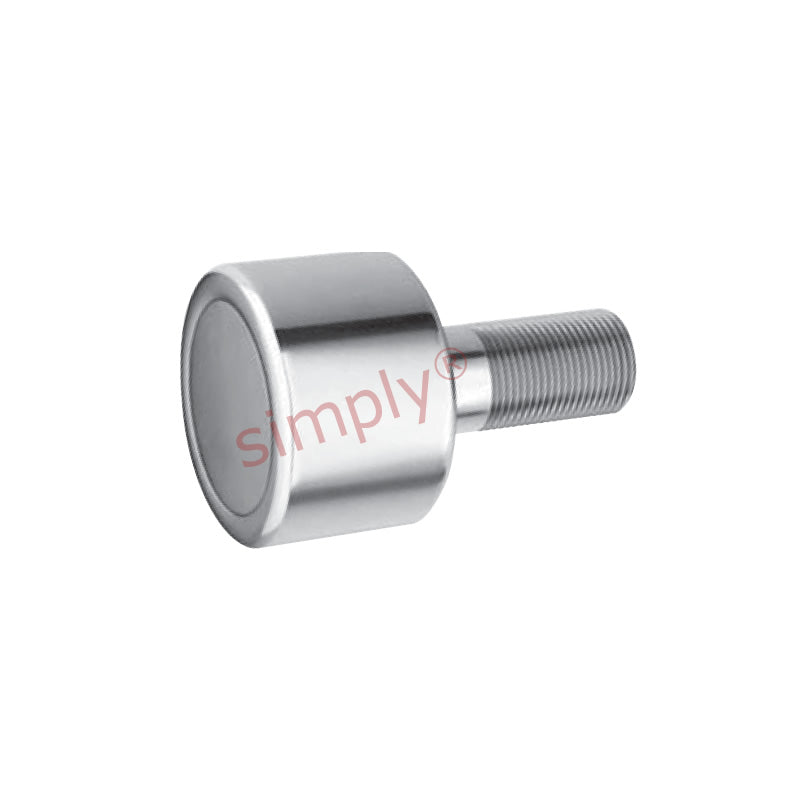

Major Brand PHR2 Hex Head Plain Hi-Roller Bearing 2 inch Outside Diameter
Major Brand PHR2 Hex Head Plain Hi-Roller Bearing 2 inch Outside Diameter
Regular price
CHF 100.00
ex VAT
Regular price
Sale price
CHF 100.00
ex VAT
Equivalent to: PHR-200-A PLR-2 PCF-2
In stock
Price Break
3+
CHF 79.15
4+
CHF 74.70
9+
CHF 73.81
19+
CHF 72.92
29+
CHF 72.03
39+
CHF 71.15
49+
CHF 66.70
59+
CHF 65.81
249+
CHF 64.92
499+
CHF 64.03
999+
CHF 62.25
Description
Description
|
Plain Hi-Roller Bearing: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. Benefits: Ideal for use in environments where dust or high moisture is present. |
Equivalent: PHR-200-A PLR-2 PCF-2
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 50.8mm = 2 inch
- Width:
- 42.86mm = 1.687 (1-11/16) inch
Technical
Technical
| A | 2 inch |
|---|---|
| B | 1.687 inch |
| C | 0.875 inch |
| D | 2 inch |
| E | 1.125 inch |
| Thread class 2A F | 7/8-14 UNF |
| G | 1 inch |
| S | 0.062 inch |
| Basic dynamic rating | 3830 lbs |
| Dynamic thrust load rating | 1000 lbs |
| Max static capacity | 1620 lbs |
