SKU: PHRE-2-3/4-CARTER

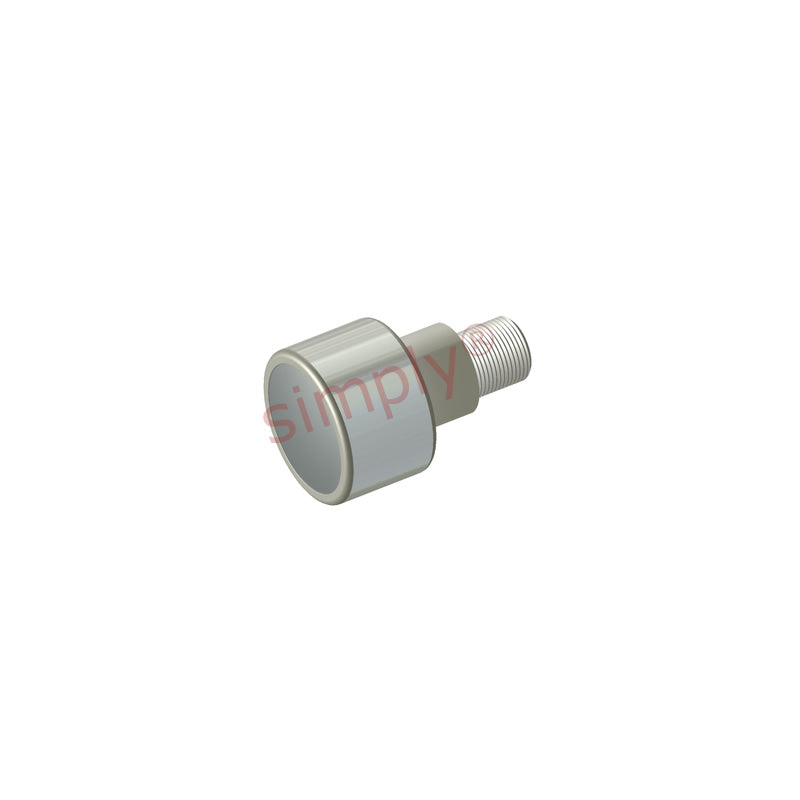

Carter PHRE2-3/4 Hex Head Plain Eccentric Hi-Roller Bearing 2-3/4 inch Outside Diameter Allow 7-10 Days
Carter PHRE2-3/4 Hex Head Plain Eccentric Hi-Roller Bearing 2-3/4 inch Outside Diameter Allow 7-10 Days
Regular price
CHF 184.50
ex VAT
Regular price
Sale price
CHF 184.50
ex VAT
In stock
Price Break
10+
CHF 164.21
19+
CHF 154.98
29+
CHF 153.14
39+
CHF 151.29
49+
CHF 149.45
74+
CHF 147.60
99+
CHF 138.38
199+
CHF 136.53
249+
CHF 134.69
499+
CHF 132.84
999+
CHF 129.15
Couldn't load pickup availability
Description
Description
|
Plain Hi-Roller Bearing Eccentric Type: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. This bearing contains an eccentric stud. Benefits: Ideal for use in environments where dust or high moisture is present. |
- Brand / Quality:
- Carter - High Quality
- Outside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
- Width:
- 42.88mm = 1.688 inch
Technical
Technical
| A | 2.75 inch |
|---|---|
| B | 1.688 inch |
| D | 2.25 inch |
| E | 1-1/2 inch |
| Thread class 2A F | 1-14 UNS |
| G | 1.687 inch |
| S | 0.062 inch |
| J | 1.375 inch |
| K | 1.105 inch |
| W | 0.03 inch |
| Basic dynamic rating | 10880 lbs |
| Dynamic thrust load rating | 4570 lbs |
| Max static capacity | 7630 lbs |
