SKU: PHRE-4

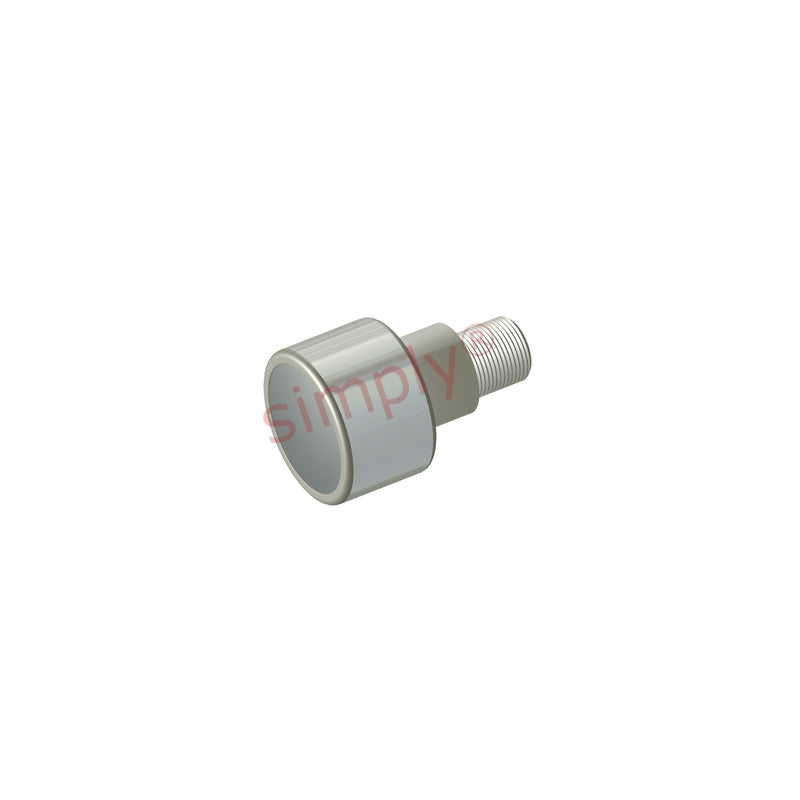

Major Brand PHRE4 Hex Head Plain Eccentric Hi-Roller Bearing 4 inch Outside Diameter Allow 7-10 Days
Major Brand PHRE4 Hex Head Plain Eccentric Hi-Roller Bearing 4 inch Outside Diameter Allow 7-10 Days
Regular price
CHF 308.00
ex VAT
Regular price
Sale price
CHF 308.00
ex VAT
Equivalent to: PHRE-400-A PLRE-4
In stock
Price Break
3+
CHF 245.16
4+
CHF 231.39
9+
CHF 228.64
19+
CHF 225.88
29+
CHF 223.13
39+
CHF 220.37
49+
CHF 206.60
59+
CHF 203.84
249+
CHF 201.09
499+
CHF 198.33
999+
CHF 192.82
Description
Description
|
Plain Hi-Roller Bearing Eccentric Type: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. This bearing contains an eccentric stud. Benefits: Ideal for use in environments where dust or high moisture is present. |
Equivalent: PHRE-400-A PLRE-4
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 101.6mm = 4 inch
- Width:
- 50.8mm = 2 inch
Technical
Technical
| A | 4 inch |
|---|---|
| B | 2 inch |
| D | 2.75 inch |
| E | 1-3/4 inch |
| Thread class 2A F | 1-1/4-12 UNF |
| G | 2.312 inch |
| S | 0.062 inch |
| J | 1.812 inch |
| K | 1.355 inch |
| W | 0.06 inch |
| Basic dynamic rating | 14270 lbs |
| Dynamic thrust load rating | 12000 lbs |
| Max static capacity | 20000 lbs |
