SKU: PHRE-4-CARTER

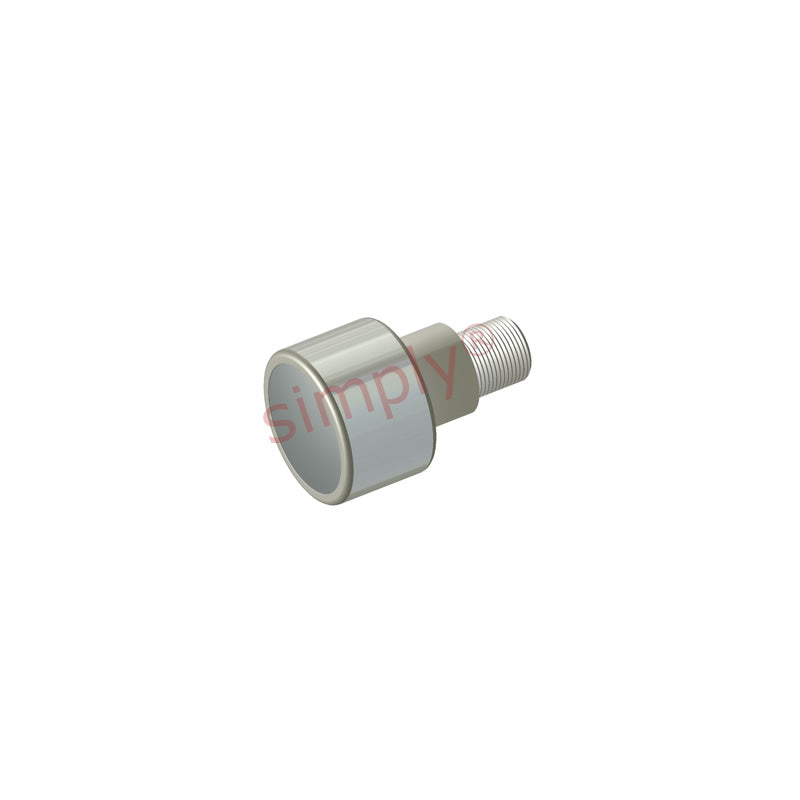

Carter PHRE4 Hex Head Plain Eccentric Hi-Roller Bearing 4 inch Outside Diameter Allow 7-10 Days
Carter PHRE4 Hex Head Plain Eccentric Hi-Roller Bearing 4 inch Outside Diameter Allow 7-10 Days
Regular price
CHF 308.99
ex VAT
Regular price
Sale price
CHF 308.99
ex VAT
In stock
Price Break
10+
CHF 275.00
19+
CHF 259.55
29+
CHF 256.46
39+
CHF 253.37
49+
CHF 250.28
74+
CHF 247.19
99+
CHF 231.74
199+
CHF 228.65
249+
CHF 225.56
499+
CHF 222.47
999+
CHF 216.29
Couldn't load pickup availability
Description
Description
|
Plain Hi-Roller Bearing Eccentric Type: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. This bearing contains an eccentric stud. Benefits: Ideal for use in environments where dust or high moisture is present. |
- Brand / Quality:
- Carter - High Quality
- Outside Diameter:
- 101.6mm = 4 inch
- Width:
- 50.8mm = 2 inch
Technical
Technical
| A | 4 inch |
|---|---|
| B | 2 inch |
| D | 2.75 inch |
| E | 1-3/4 inch |
| Thread class 2A F | 1-1/4-12 UNF |
| G | 2.312 inch |
| S | 0.062 inch |
| J | 1.812 inch |
| K | 1.355 inch |
| W | 0.06 inch |
| Basic dynamic rating | 14270 lbs |
| Dynamic thrust load rating | 12000 lbs |
| Max static capacity | 20000 lbs |
