SKU: PHS22.EU

Budget PHS22 Right Hand Steel / Bronze Lined Plain Female Rod End 22mm Bore M22x1.5 Thread

Name: Budget PHS22 Right Hand Steel / Bronze Lined Plain Female Rod End 22mm Bore M22x1.5 Thread
Brand: Gen
SKU: PHS22.EU
Price: 15.00 CHF
Availability: InStock

CHF 15.00 ex VAT

Sale Sold out

Equivalent to: GIKFR22PB SIKAC22M SF22 FB-M22

In stock

Price Break

10+ CHF 11.34

19+ CHF 10.71

29+ CHF 10.58

39+ CHF 10.45

49+ CHF 10.32

74+ CHF 10.20

99+ CHF 9.56

199+ CHF 9.43

249+ CHF 9.30

499+ CHF 9.18

999+ CHF 8.92

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Female Rod End with Phosphor Bronze Race: Right hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Equivalent: GIKFR22PB SIKAC22M SF22 FB-M22

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M22x1.5
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 22mm
Material:: Bronze Lined

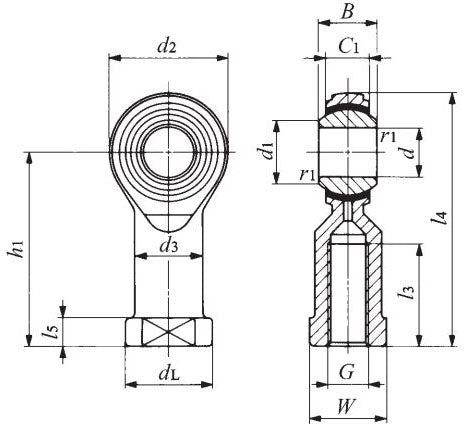

Technical

d	22mm
B	28mm
r1	0.6mm
C1	20mm
d1 max	25.8mm
d2	50mm
d3	M22x1.5
h1	84mm
L3	43mm
L4	109mm
L5	12mm
d4	30mm
d5	37mm
S	32mm
Ball diameter	1-1/2 inch
Dynamic load Cr	38.1 kN
Static load Cor	42.6 kN
Max angle α	15
Weight	0.49 kg
