SKU: PME40-XL-N-INA

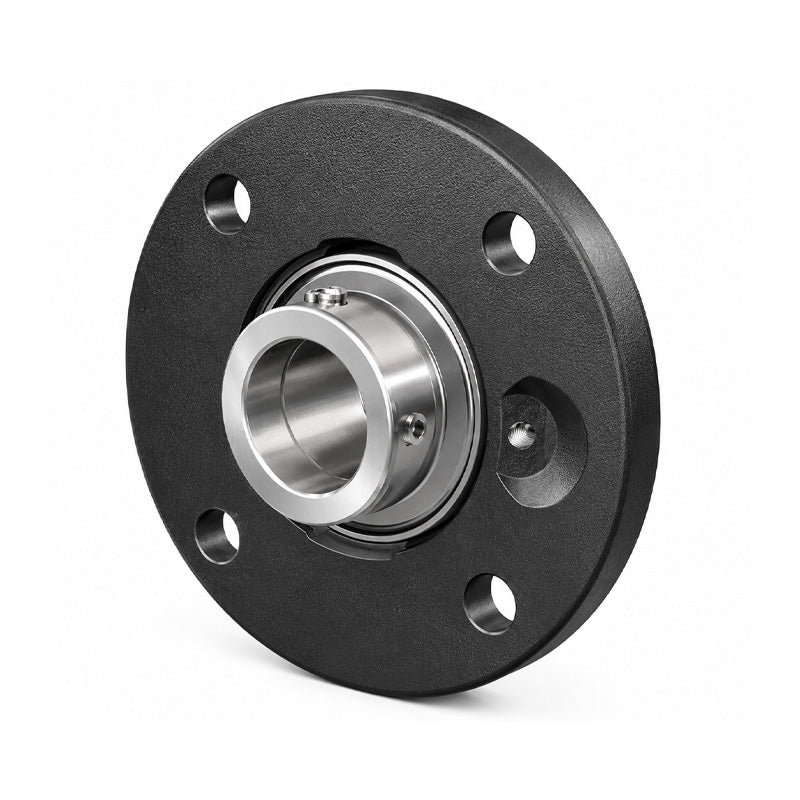

INA PME40XLN Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 40mm Bore
INA PME40XLN Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 40mm Bore
Regular price
CHF 78.00
ex VAT
Regular price
Sale price
CHF 78.00
ex VAT
In stock
Price Break
4+
CHF 61.77
9+
CHF 58.30
19+
CHF 57.60
29+
CHF 56.91
39+
CHF 56.21
49+
CHF 55.52
59+
CHF 52.05
69+
CHF 51.36
79+
CHF 50.66
89+
CHF 49.97
99+
CHF 48.58
Description
Description
|
INA 4 Bolt Round Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This round cast iron housing has through holes for location purposes and a centring spigot. The centring spigot is mounted in a turned recess in the machine structure. This gives concentric alignment of the housings and relieves the fixing screws of any radial forces. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, centring spigot, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Style:
- PME
- Pitch Circle Diameter:
- 120mm
Technical
Technical
| d | 40mm |
|---|---|
| H | 145mm |
| B1 | 43.8mm |
| A | 23mm |
| A1 | 11.5mm |
| A2 | 1mm |
| d3 max | 58mm |
| J | 120 |
| N | 11.5mm |
| Q | M6 |
| S | 2mm |
| U | 31.7mm |
| Z | 100mm (Tolerance: h8) |
| Mass | 1.62 kg |
| Basic dynamic load rating Cr | 34500 N |
| Basic static load rating Cor | 19800 N |
| Designation of housing | ME08 |
| Designation of bearing | GRAE40-XL-NPP-B |
| Bearing end cap, closed design (to be ordered seperately) | KASK08 |
