SKU: PNA12/28-MB

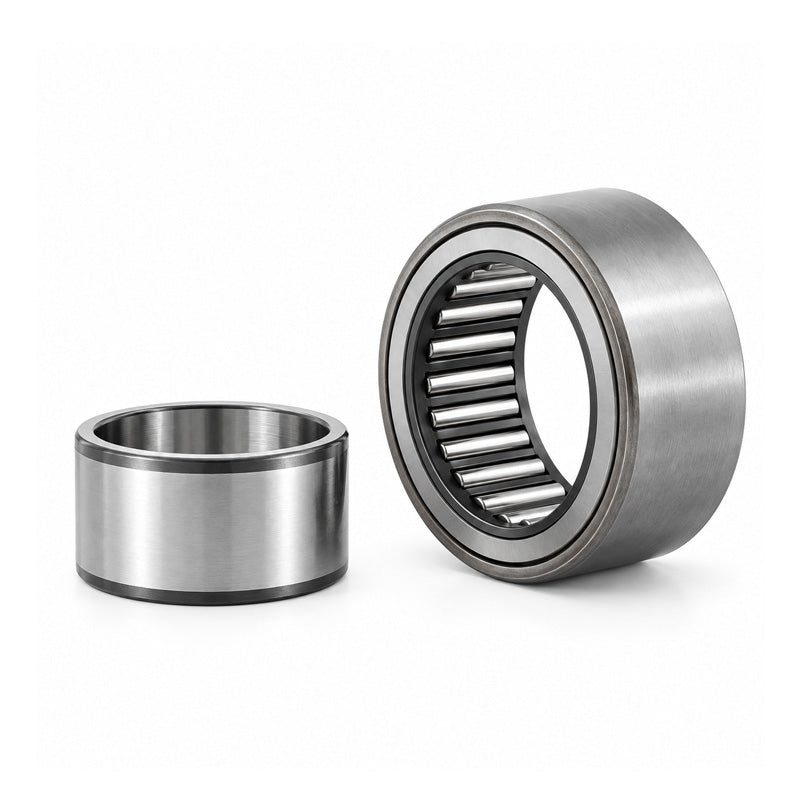

Major Brand PNA12/28 Needle Roller Bearing Alignment Type With Shaft Sleeve 12x28x12
Major Brand PNA12/28 Needle Roller Bearing Alignment Type With Shaft Sleeve 12x28x12
Regular price
CHF 48.00
ex VAT
Regular price
Sale price
CHF 48.00
ex VAT
In stock
Price Break
10+
CHF 37.85
19+
CHF 35.72
29+
CHF 35.30
39+
CHF 34.87
49+
CHF 34.45
74+
CHF 34.02
99+
CHF 31.90
199+
CHF 31.47
249+
CHF 31.04
499+
CHF 30.62
999+
CHF 29.77
Description
Description
|
Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied with the inner ring, tolerates misalignment |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Width:
- 12mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 28mm |
| B | 12mm |
| Dynamic load | 7370 N |
| Static load | 9150 N |
| Fatigue load limit Pu | 1080 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| F | 15mm |
| D1 | 24.5mm |
| r min | 1mm |
| r1r2 min | 0.3mm |
| s (axial disp) | 0.5mm |
| da min | 14mm |
| Da min | 23.5 |
