SKU: PNA15/32-EU

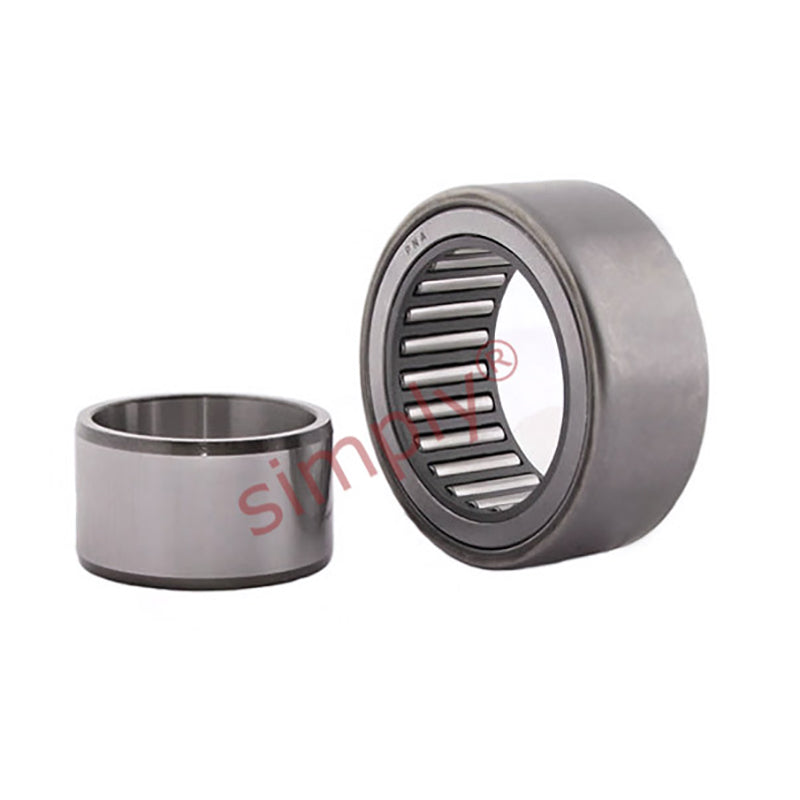

PNA15/32 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 15x32x16
PNA15/32 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 15x32x16
Regular price
CHF 23.00
ex VAT
Regular price
Sale price
CHF 23.00
ex VAT
In stock
Price Break
10+
CHF 17.75
19+
CHF 16.75
29+
CHF 16.55
39+
CHF 16.35
49+
CHF 16.16
74+
CHF 15.96
99+
CHF 14.96
199+
CHF 14.76
249+
CHF 14.56
499+
CHF 14.36
999+
CHF 13.96
Description
Description
|
Budget Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied with the inner ring, tolerates misalignment |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 16mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 32mm |
| B | 16mm |
| Dynamic load C | 12800 N |
| Static load Co | 17600 N |
| Fatigue load limit Pu | 2120 N |
| Speed in grease | 15000 rpm |
| Speed in oil | 22000 rpm |
| F | 18mm |
| D1 | 27mm |
| r min | 1mm |
| r1r2 min | 0.3mm |
| s (axial disp) | 0.5mm |
| da min | 17mm |
| Da min | 26mm |
| Da max | 27mm |
| ra max | 1mm |
| rb max | 0.3mm |
| Weight | 62 g |
