SKU: PNA17/35-MB

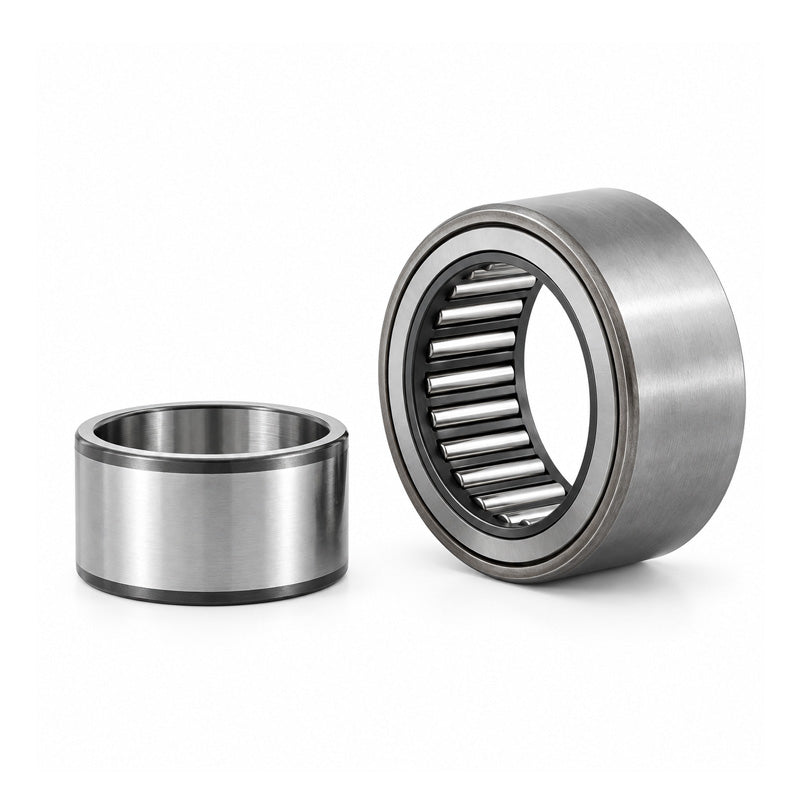

Major Brand PNA17/35 Needle Roller Bearing Alignment Type With Shaft Sleeve 17x35x16
Major Brand PNA17/35 Needle Roller Bearing Alignment Type With Shaft Sleeve 17x35x16
Regular price
CHF 57.40
ex VAT
Regular price
Sale price
CHF 57.40
ex VAT
In stock
Price Break
10+
CHF 51.09
19+
CHF 48.22
29+
CHF 47.64
39+
CHF 47.07
49+
CHF 46.49
74+
CHF 45.92
99+
CHF 43.05
199+
CHF 42.48
249+
CHF 41.90
499+
CHF 41.33
999+
CHF 40.18
Couldn't load pickup availability
Description
Description
|
Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied with the inner ring, tolerates misalignment |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 16mm
Technical
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 16mm |
| Dynamic load | 13200 N |
| Static load | 19300 N |
| Fatigue load limit Pu | 2280 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| F | 20mm |
| D1 | 30.5mm |
| r min | 1mm |
| r1r2 min | 0.3mm |
| s (axial disp) | 0.5mm |
| da min | 19mm |
| Da min | 29.5 |
