SKU: POS10.MB.FLURO

Fluro POS10 Right Hand Steel / Bronze Lined Plain Male Rod End 10mm Bore M10 Thread

Name: Fluro POS10 Right Hand Steel / Bronze Lined Plain Male Rod End 10mm Bore M10 Thread
Brand: Fluro
SKU: POS10.MB.FLURO
Price: 25.00 CHF
Availability: InStock

CHF 25.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 19.73

19+ CHF 18.62

29+ CHF 18.40

39+ CHF 18.18

49+ CHF 17.96

74+ CHF 17.74

99+ CHF 16.63

199+ CHF 16.41

249+ CHF 16.18

499+ CHF 15.96

999+ CHF 15.52

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

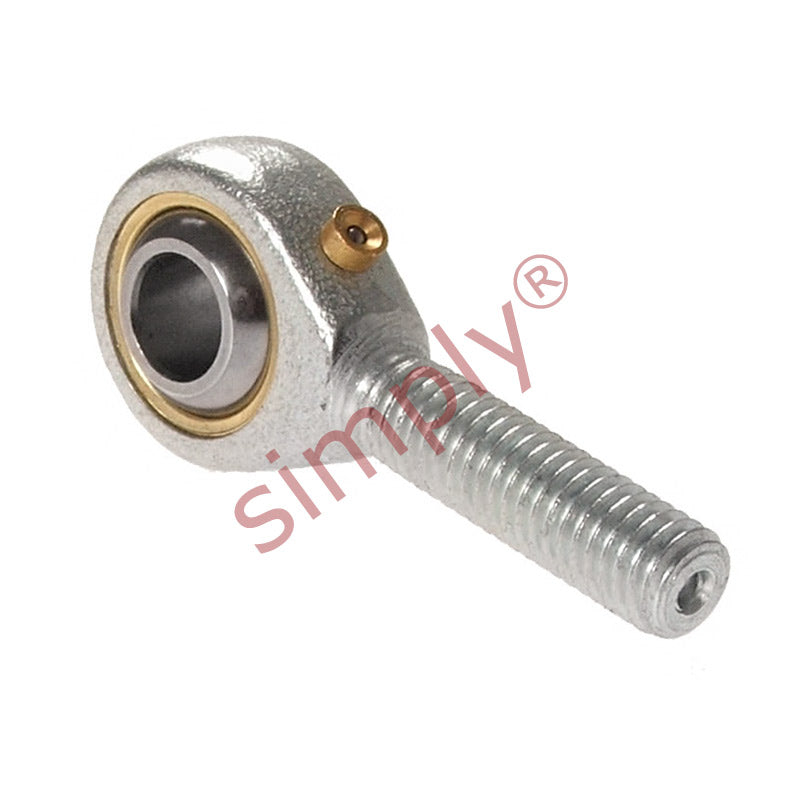

Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Brand / Quality:: Fluro - High Quality
Thread Size:: M10
Thread Direction:: Right Hand
Material:: Bronze Lined

Technical

d	10mm
B	14mm
r1	0.6mm
C1	10.5mm
d1 max	12.9mm
d2	26mm
d3	M10x1.5
h	48mm
l1	29mm
l2	61mm
Ball diameter	3/4 inch
Dynamic load Cr	10 kN
Static load Cor	13.6 kN
Max angle a	13
Weight	0.054 kg
