SKU: POS16L.EU

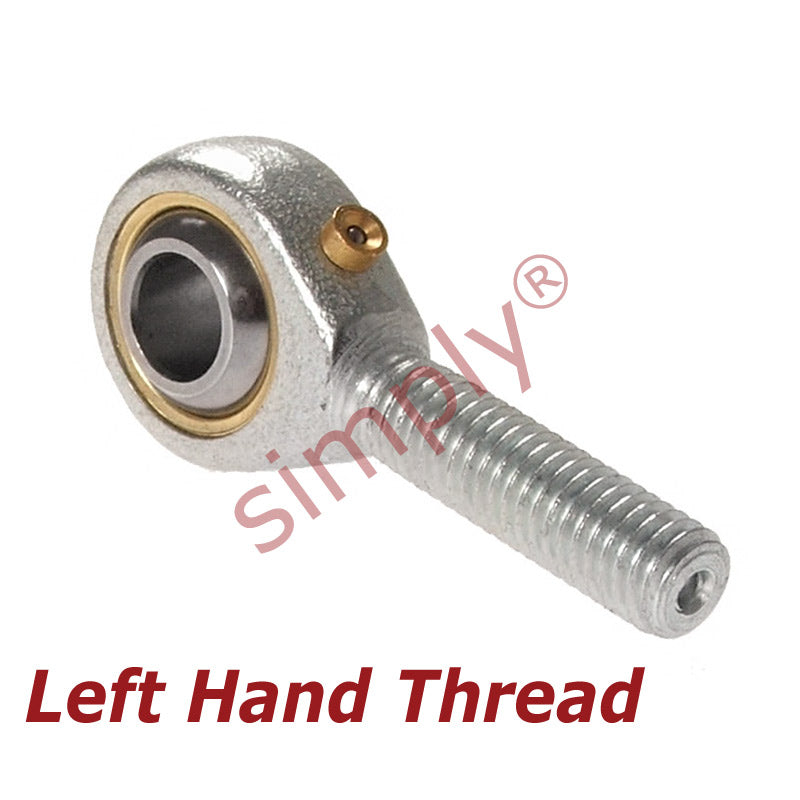

Budget POS16L Left Hand Steel / Bronze Lined Plain Male Rod End 16mm Bore M16x2 Thread
Budget POS16L Left Hand Steel / Bronze Lined Plain Male Rod End 16mm Bore M16x2 Thread
Regular price
CHF 10.00
ex VAT
Regular price
Sale price
CHF 10.00
ex VAT
Equivalent to: SALKAC16M MBL-M16
In stock
Price Break
10+
CHF 7.48
19+
CHF 7.06
29+
CHF 6.98
39+
CHF 6.90
49+
CHF 6.81
74+
CHF 6.73
99+
CHF 6.31
199+
CHF 6.22
249+
CHF 6.14
499+
CHF 6.06
999+
CHF 5.89
Description
Description
|
Male Rod End with Phosphor Bronze Race: LEFT hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: SALKAC16M MBL-M16
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M16x2
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 16mm
- Material:
- Bronze Lined
Technical
Technical
| d | 16mm |
|---|---|
| B | 21mm |
| r1 | 0.6mm |
| C1 | 15mm |
| d1 max | 19.3mm |
| d2 | 38mm |
| d3 | M16x2 |
| h | 66mm |
| l1 | 40mm |
| l2 | 85mm |
| Ball diameter | 1-1/8 inch |
| Dynamic load Cr | 21.4 kN |
| Static load Cor | 25.9 kN |
| Max angle α | 15 |
| Weight | 0.185 kg |
