SKU: POS18.EC

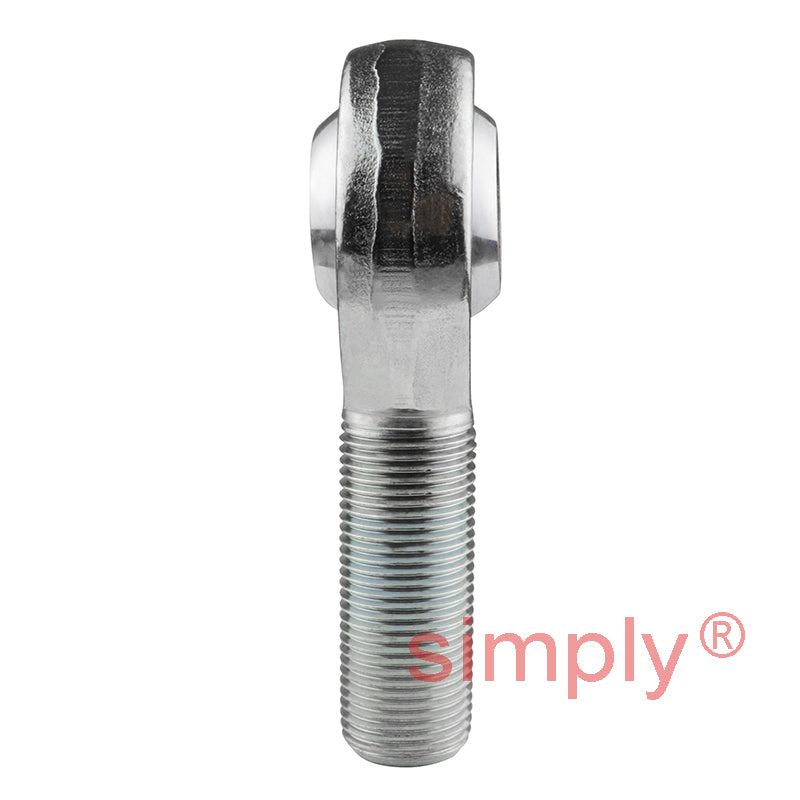

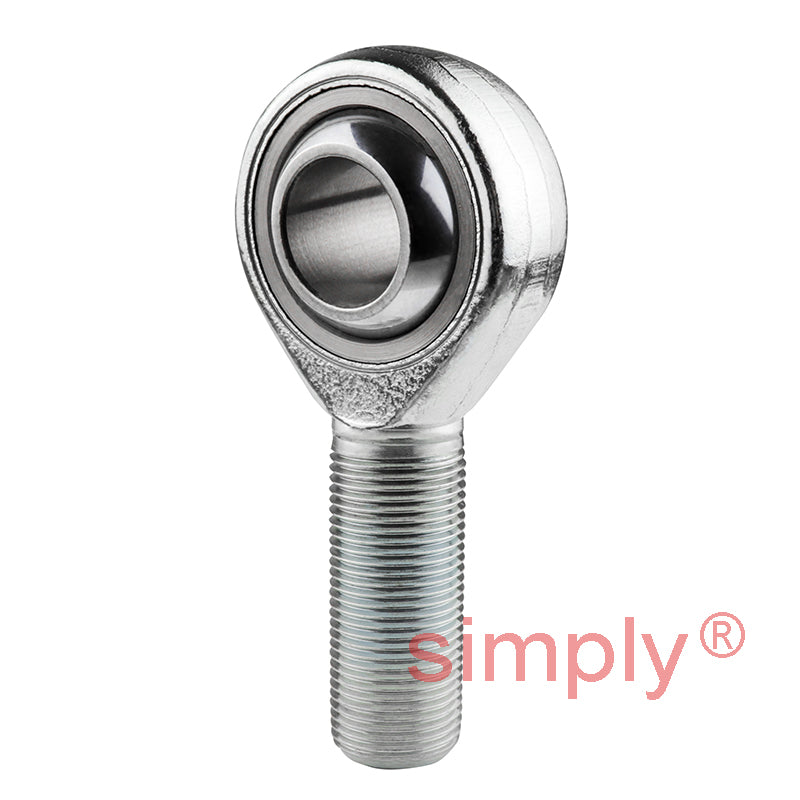

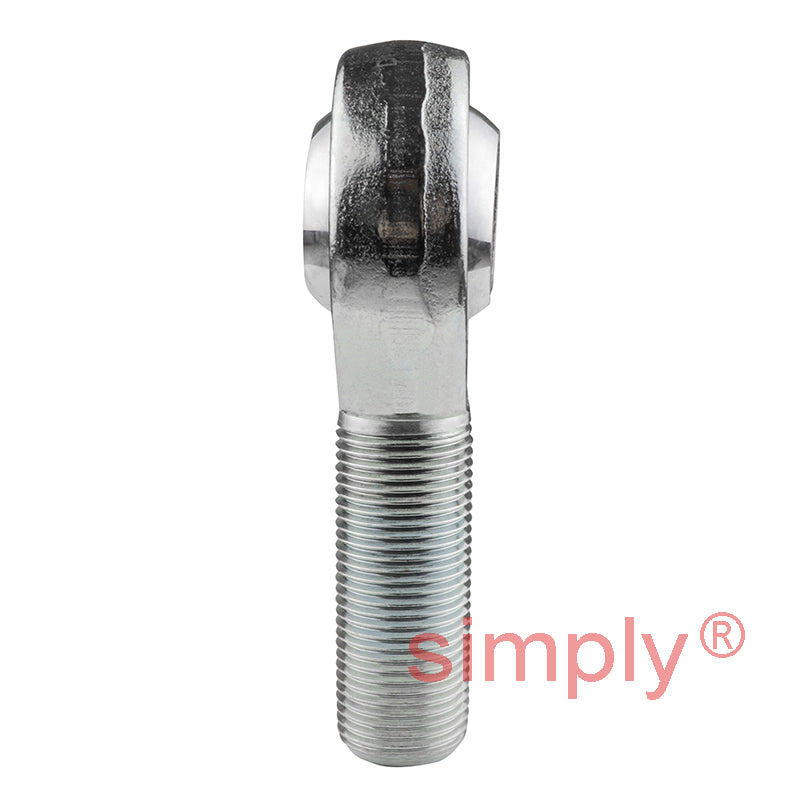

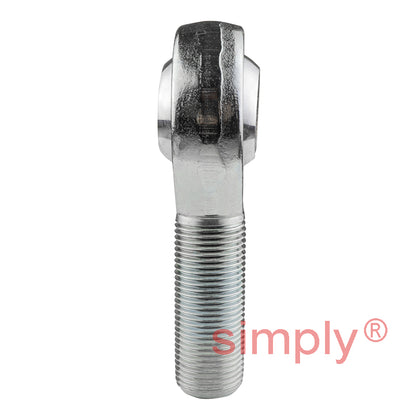

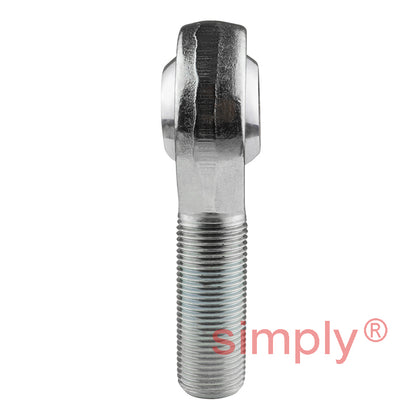

Budget POS18 Right Hand Steel / PTFE Lined Plain Male Rod End 18mm Bore M18x1.5 Thread
Budget POS18 Right Hand Steel / PTFE Lined Plain Male Rod End 18mm Bore M18x1.5 Thread
Regular price
CHF 9.00
ex VAT
Regular price
Sale price
CHF 9.00
ex VAT
In stock
Price Break
10+
CHF 7.15
19+
CHF 6.75
29+
CHF 6.67
39+
CHF 6.59
49+
CHF 6.51
74+
CHF 6.43
99+
CHF 6.02
199+
CHF 5.94
249+
CHF 5.86
499+
CHF 5.78
999+
CHF 5.62
Description
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M18x1.5
- Thread Direction:
- Right Hand
- Material:
- PTFE Lined
Technical
Technical
| d | 18mm |
|---|---|
| B | 23mm |
| r1 | 0.6mm |
| C1 | 16.5mm |
| d1 max | 21.8mm |
| d2 | 42mm |
| d3 | M18x1.5 |
| h | 72mm |
| l1 | 44mm |
| l2 | 93mm |
| Ball diameter | 1-1/4 inch |
| Dynamic load Cr | 26.2 kN |
| Static load Cor | 30.8 kN |
| Max angle α | 15 |
| Weight | 0.26 kg |
