SKU: POS5L.EU

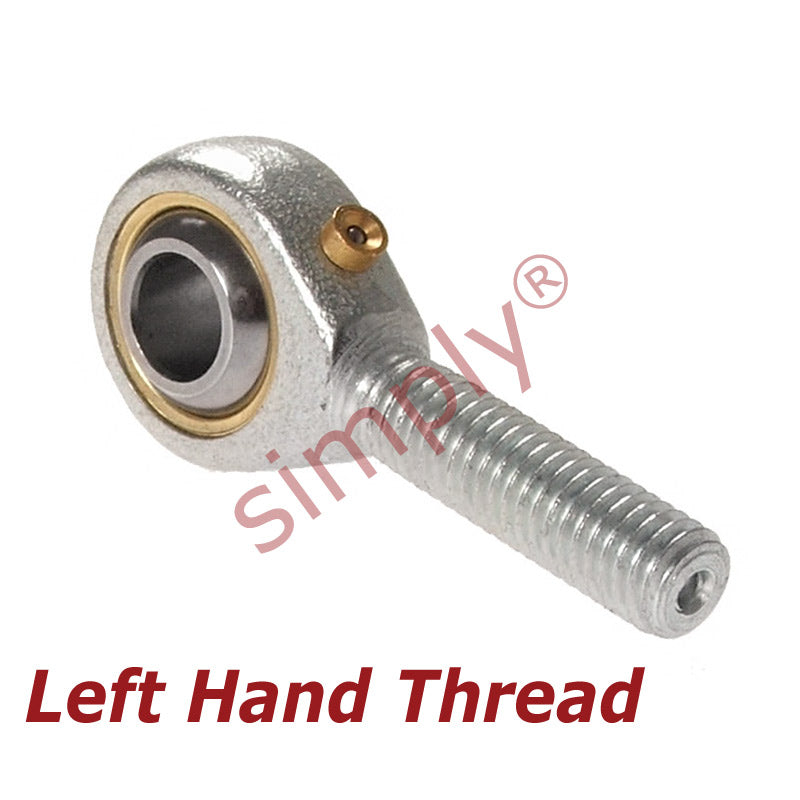

Budget POS5L Left Hand Steel / Bronze Lined Plain Male Rod End 5mm Bore M5x0.8 Thread
Budget POS5L Left Hand Steel / Bronze Lined Plain Male Rod End 5mm Bore M5x0.8 Thread
Regular price
CHF 5.00
ex VAT
Regular price
Sale price
CHF 5.00
ex VAT
Equivalent to: SALKAC5M MBL-M05
In stock
Price Break
10+
CHF 3.75
19+
CHF 3.54
29+
CHF 3.49
39+
CHF 3.45
49+
CHF 3.41
74+
CHF 3.37
99+
CHF 3.16
199+
CHF 3.11
249+
CHF 3.07
499+
CHF 3.03
999+
CHF 2.95
Description
Description
|
Male Rod End with Phosphor Bronze Race: LEFT hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: SALKAC5M MBL-M05
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M5x0.8
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 5mm
- Material:
- Bronze Lined
Technical
Technical
| d | 5mm |
|---|---|
| B | 8mm |
| r1 | 0.3mm |
| C1 | 6mm |
| d1 max | 7.7mm |
| d2 | 16mm |
| d3 | M5x0.8 |
| h | 33mm |
| l1 | 20mm |
| l2 | 41mm |
| Ball diameter | 7/16 inch |
| Dynamic load Cr | 3.3 kN |
| Static load Cor | 3.4 kN |
| Max angle α | 13 |
| Weight | 0.0125 kg |
