SKU: POS6L.EU

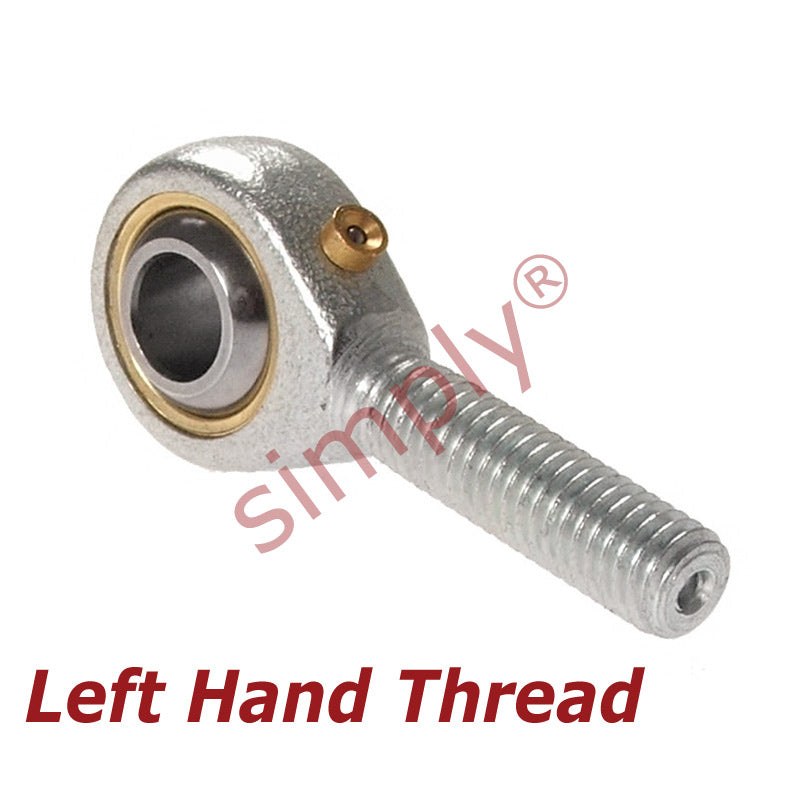

Budget POS6L Left Hand Steel / Bronze Lined Plain Male Rod End 6mm Bore M6x1 Thread
Budget POS6L Left Hand Steel / Bronze Lined Plain Male Rod End 6mm Bore M6x1 Thread
Regular price
CHF 6.00
ex VAT
Regular price
Sale price
CHF 6.00
ex VAT
Equivalent to: SALKAC6M MBL-M06
In stock
Price Break
10+
CHF 4.14
19+
CHF 3.91
29+
CHF 3.86
39+
CHF 3.82
49+
CHF 3.77
74+
CHF 3.72
99+
CHF 3.49
199+
CHF 3.45
249+
CHF 3.40
499+
CHF 3.35
999+
CHF 3.26
Description
Description
|
Male Rod End with Phosphor Bronze Race: LEFT hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: SALKAC6M MBL-M06
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M6x1
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 6mm
- Material:
- Bronze Lined
Technical
Technical
| d | 6mm |
|---|---|
| B | 9mm |
| r1 | 0.3mm |
| C1 | 6.75mm |
| d1 max | 8.9mm |
| d2 | 18mm |
| d3 | M6x1 |
| h | 36mm |
| l1 | 22mm |
| l2 | 45mm |
| Ball diameter | 1/2 inch |
| Dynamic load Cr | 4.3 kN |
| Static load Cor | 4.8 kN |
| Max angle α | 13 |
| Weight | 0.019 kg |
