SKU: POS8.EC

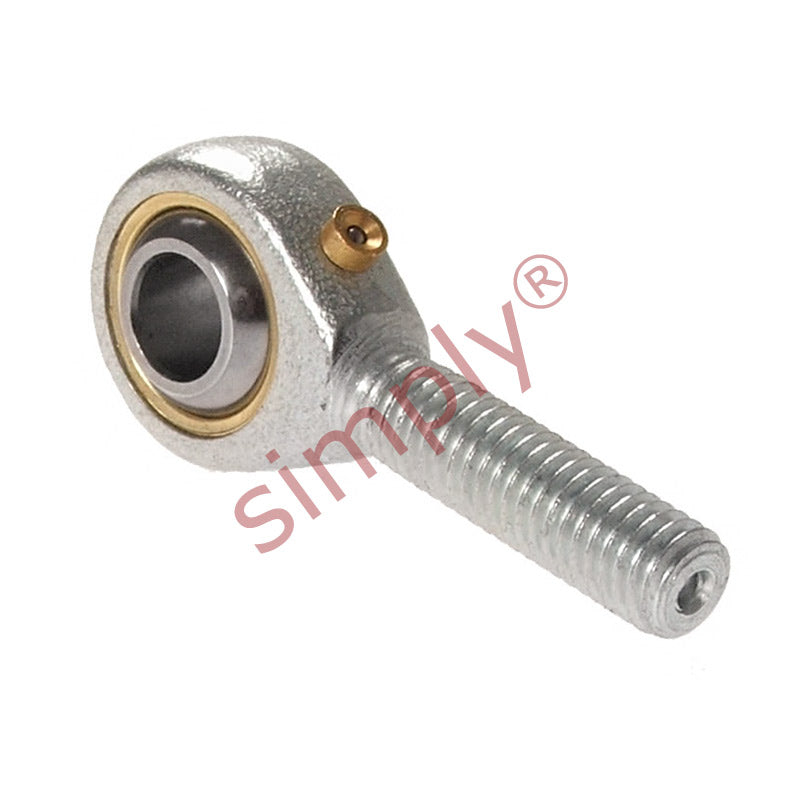

Budget POS8 Right Hand Steel / PTFE Lined Plain Male Rod End 8mm Bore M8x1.25 Thread
Budget POS8 Right Hand Steel / PTFE Lined Plain Male Rod End 8mm Bore M8x1.25 Thread
Regular price
CHF 35.00
ex VAT
Regular price
Sale price
CHF 35.00
ex VAT
In stock
Price Break
10+
CHF 27.14
19+
CHF 25.61
29+
CHF 25.31
39+
CHF 25.00
49+
CHF 24.70
74+
CHF 24.39
99+
CHF 22.87
199+
CHF 22.56
249+
CHF 22.26
499+
CHF 21.95
999+
CHF 21.34
Description
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M8x1.25
- Thread Direction:
- Right Hand
- Material:
- PTFE Lined
Technical
Technical
| d | 8mm |
|---|---|
| B | 12mm |
| r1 | 0.3mm |
| C1 | 9mm |
| d1 max | 10.3mm |
| d2 | 22mm |
| d3 | M8x1.25 |
| h | 42mm |
| l1 | 25mm |
| l2 | 53mm |
| Ball diameter | 5/8 inch |
| Dynamic load Cr | 7.1 kN |
| Static load Cor | 8.8 kN |
| Max angle α | 14 |
| Weight | 0.032 kg |
