SKU: POS8L.EC

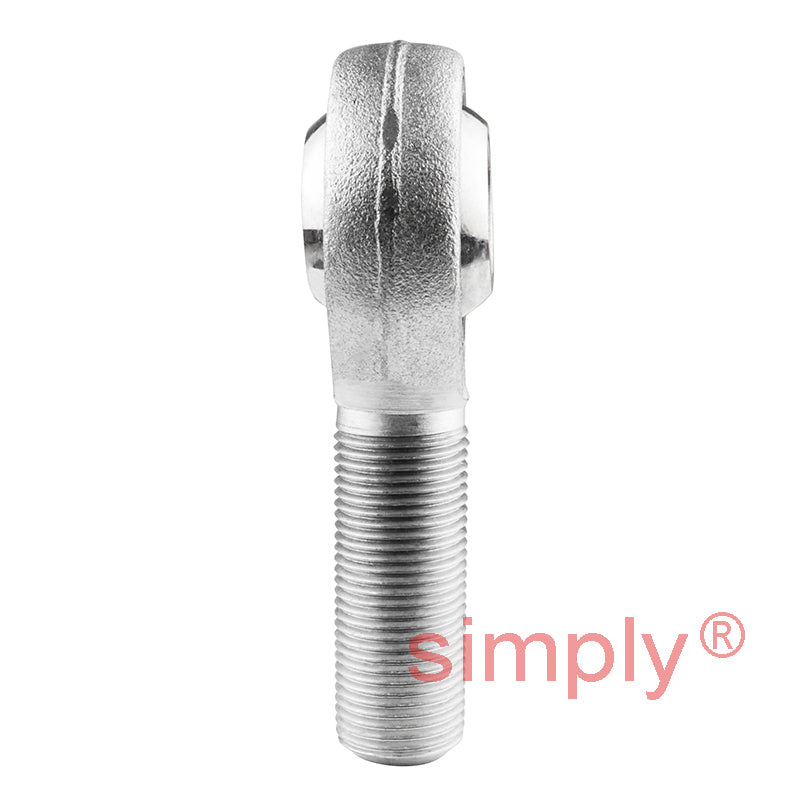

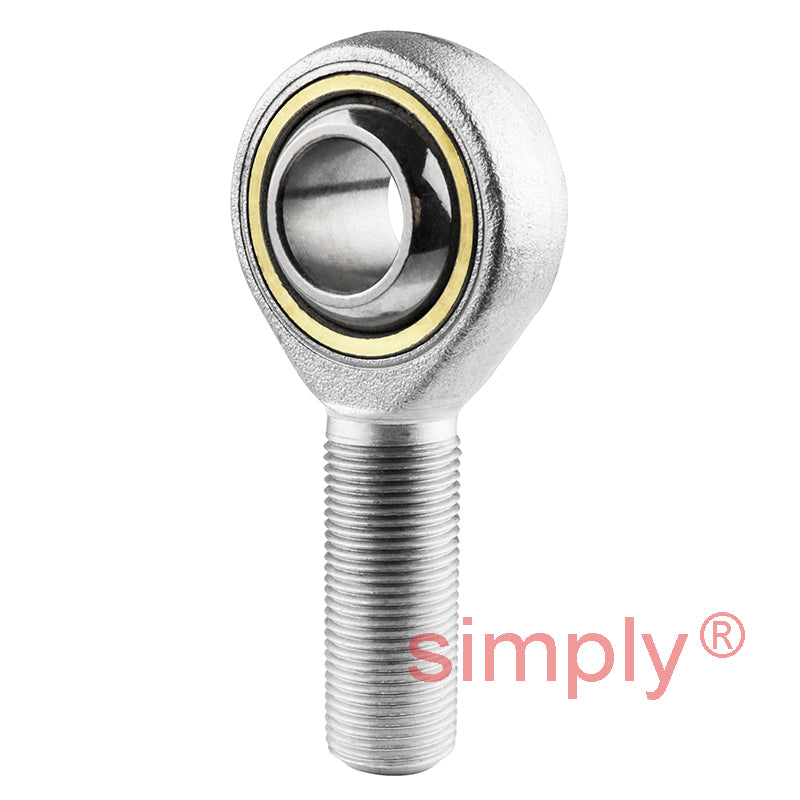

Budget POS8LEC Maintenance Free Left Hand Steel / PTFE Lined Plain Male Rod End 8mm Bore M8x1.25 Thread
Budget POS8LEC Maintenance Free Left Hand Steel / PTFE Lined Plain Male Rod End 8mm Bore M8x1.25 Thread
Regular price
CHF 9.00
ex VAT
Regular price
Sale price
CHF 9.00
ex VAT
In stock
Price Break
10+
CHF 6.55
19+
CHF 6.18
29+
CHF 6.11
39+
CHF 6.04
49+
CHF 5.96
74+
CHF 5.89
99+
CHF 5.52
199+
CHF 5.45
249+
CHF 5.37
499+
CHF 5.30
999+
CHF 5.15
Description
Description
|
Steel Maintenance Free Male Rod End with PTFE Liner: These rod ends consist of a Steel body with a Steel ball running in a PTFE maintenance free liner captive in a Steel ball mount. Benefits: Cost-effective replacement bearing, sliding surfaces are steel against PTFE, and maintenance free. Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover them with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Steel, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M8x1.25
- Thread Direction:
- Left Hand
- Material:
- PTFE Lined
Technical
Technical

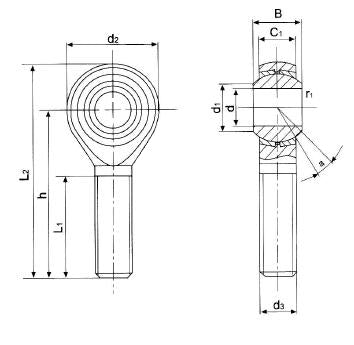

| d | 8mm |
|---|---|
| B | 12mm |
| r1 | 0.3mm |
| C1 | 9mm |
| d1 max | 10.3mm |
| d2 | 22mm |
| d3 | M8x1.25 |
| h | 42mm |
| l1 | 25mm |
| l2 | 53mm |
| Ball diameter | 5/8 inch |
| Dynamic load Cr | 7.1 kN |
| Static load Cor | 8.8 kN |
| Max angle α | 14 |
| Weight | 0.032 kg |
