SKU: PSFT1CR-RHP

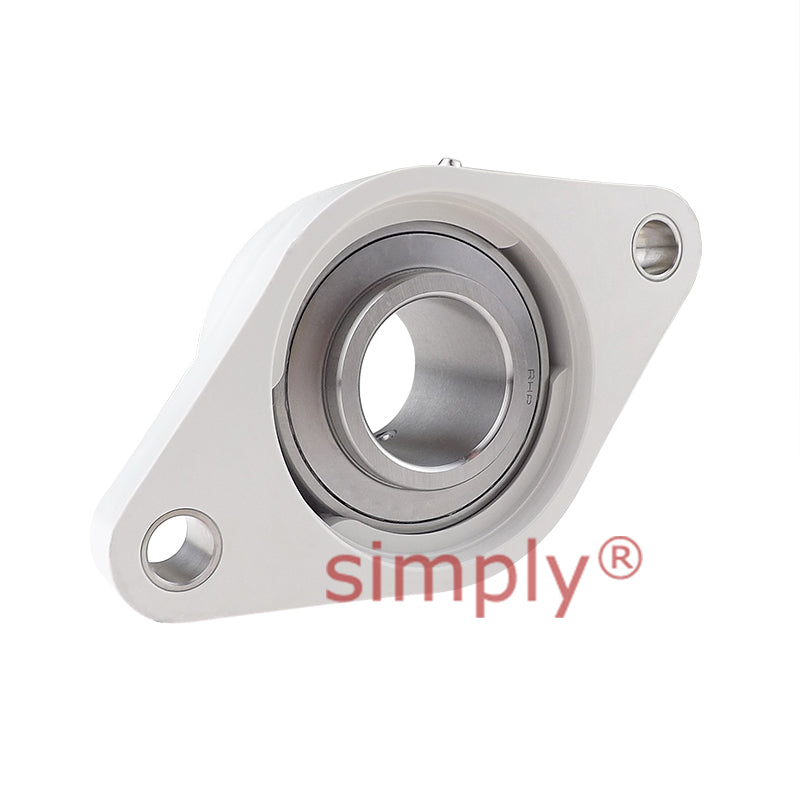

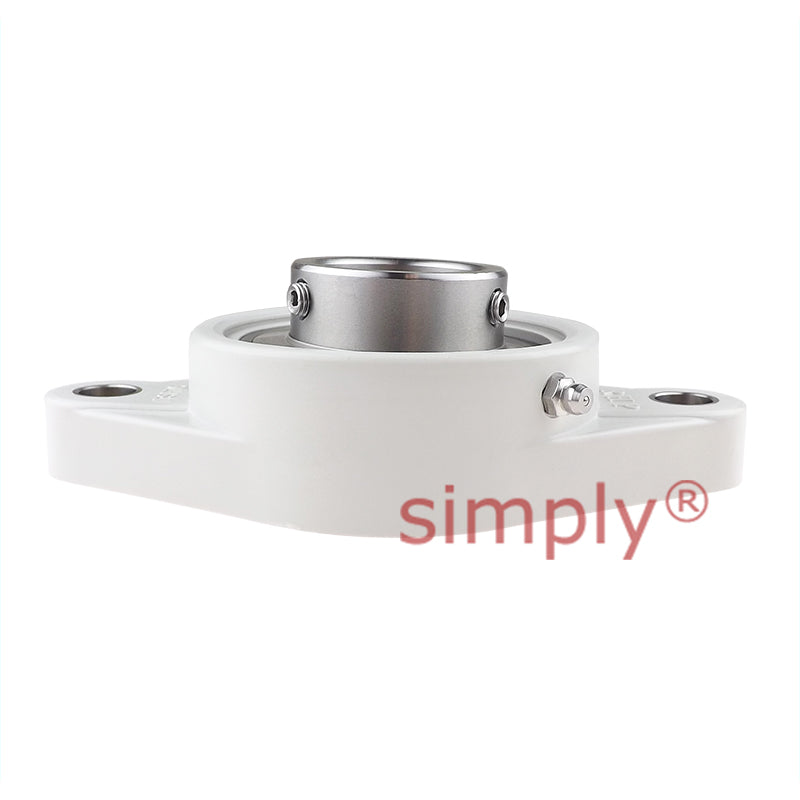

RHP PSFT1CR Thermo Plastic Two Bolt Oval Flange Housing with 1 inch Bore Stainless Insert - Allow 2-3 Days

RHP PSFT1CR Thermo Plastic Two Bolt Oval Flange Housing with 1 inch Bore Stainless Insert - Allow 2-3 Days
Regular price CHF 124.00 ex VAT
Regular price Sale price CHF 124.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 109.75
20+ CHF 105.32
30+ CHF 103.10
40+ CHF 99.77
50+ CHF 97.56
75+ CHF 92.01
100+ CHF 77.60
200+ CHF 0.00
250+ CHF 0.00
500+ CHF 0.00
1000+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
L 68.4mm
H 130.3mm
J 99mm
G M10
A 29.1mm
A1 36.7mm
A4 13.4mm
B 34mm
14.3 14.3mm
Approx weight kg 0.3 kg
T1 Intermittent Loading 4400 N
T1 Continuous Loading 2200 N
T1 Cyclical Loading 1200 N
T2 Intermittent Loading 3000 N
T2 Continuous Loading 1500 N
T2 Cyclical Loading 800 N
T3 Intermittent Loading 1400 N
T3 Continuous Loading 700 N
T3 Cyclical Loading 400 N
Max. Fixing Bolt Torque 25 Nm
