SKU: PSM040708A51-EU

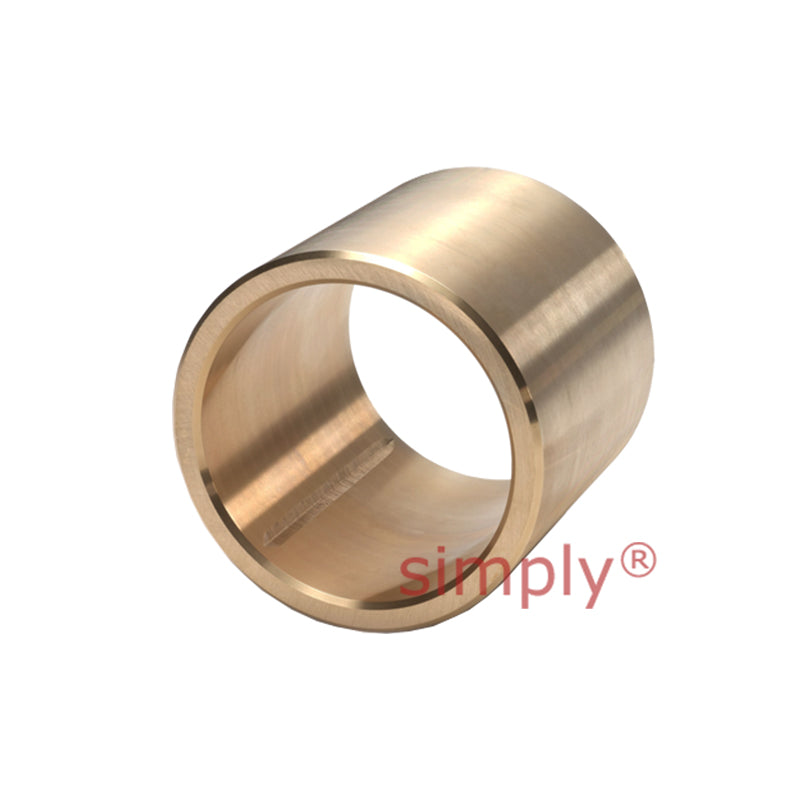

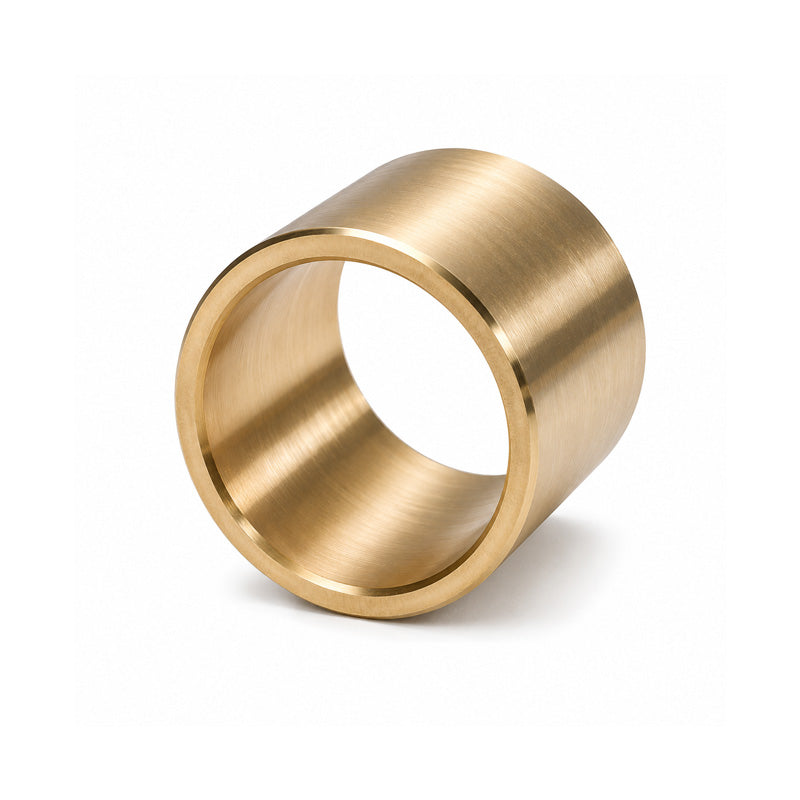

PSM040708A51 Premier Budget Metric Plain Sintered Bronze Bush 4x7x8mm
Equivalent to: SBC 004/007 X 008
In stock
Price Break
Description
Premier Budget PSM/PSMF Bronze Bushing: Sintered Bronze cylindrical bushings are all self-lubricating and maintenance-free. The sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, which makes the bushings suitable for rotating applications. We offer a full range of both plain and flanged cylindrical bushings. Sintered Bronze bushings are most suitable for applications with rotating movements and where the self-lubricating performance requirements are high.
Uses of Application electrical equipment, household equipment, printing machinery, machine tools
Equivalent: SBC 004/007 X 008
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 4mm
- Outside Diameter:
- 7mm
- Length:
- 8mm
Technical
| d | 4mm |
|---|---|
| D | 7mm |
| B | 8mm |
| Tolerance shaft | h8 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 10 N/mm 2 |
| Specific Static Load Factor ( K0 ) | 20 N/mm 2 |
| Permissable Sliding Velocity ( v ) | min. 0.25 m/s |
| Permissable Sliding Velocity ( v ) | max. 5 m/s |
| Coefficient of Friction ( y ) | min. 0.05 |
| Coefficient of Friction ( y ) | max. 0.1 |
| Weight | 0.001kg |
