SKU: PSM303530A51-SKF

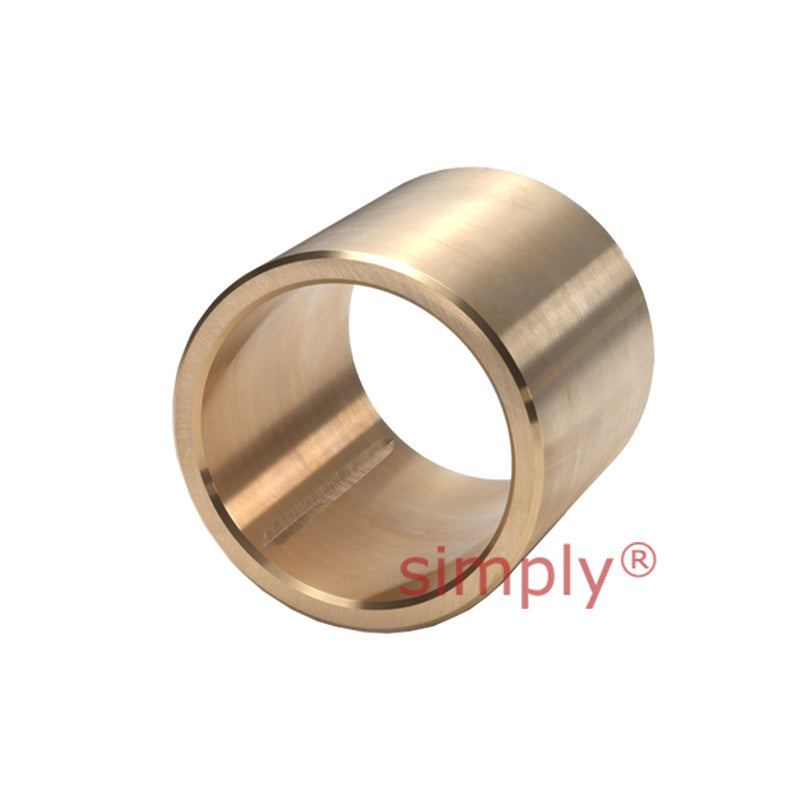

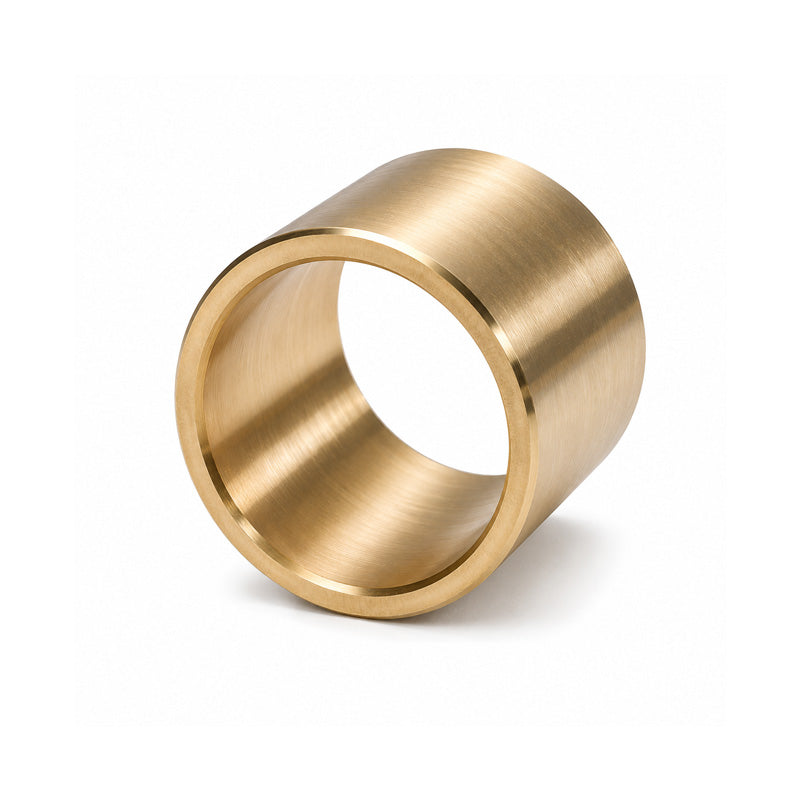

SKF PSM303530A51 Metric Plain Sintered Bronze Bush 30x35x30mm
SKF PSM303530A51 Metric Plain Sintered Bronze Bush 30x35x30mm
Regular price
CHF 15.00
ex VAT
Regular price
Sale price
CHF 15.00
ex VAT
In stock
Price Break
9+
CHF 11.31
19+
CHF 10.68
29+
CHF 10.55
39+
CHF 10.42
49+
CHF 10.30
69+
CHF 10.17
99+
CHF 9.53
199+
CHF 9.41
249+
CHF 9.28
499+
CHF 9.15
999+
CHF 8.90
Share this product
Description
Description
PSM/PSMF Bronze Bushing: SKF Sintered Bronze cylindrical bushings are all self-lubricating and maintenance-free. The sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, which makes the bushings suitable for rotating applications. SKF offers a full range of both plain and flanged cylindrical bushings. SKF Sintered Bronze bushings are most
suitable for applications with rotating movements and where the self-lubricating performance requirements are high.
Uses of Application electrical equipment, household equipment, printing machinery, machine tools
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 35mm
- Length:
- 30mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 35mm |
| B | 30mm |
| Tolerance shaft | h8 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 10 N/mm 2 |
| Specific Static Load Factor ( K0 ) | 20 N/mm 2 |
| Permissable Sliding Velocity ( v ) | min. 0.25 m/s |
| Permissable Sliding Velocity ( v ) | max. 5 m/s |
| Coefficient of Friction ( y ) | min. 0.05 |
| Coefficient of Friction ( y ) | max. 0.1 |
| Weight | 0.047kg |
