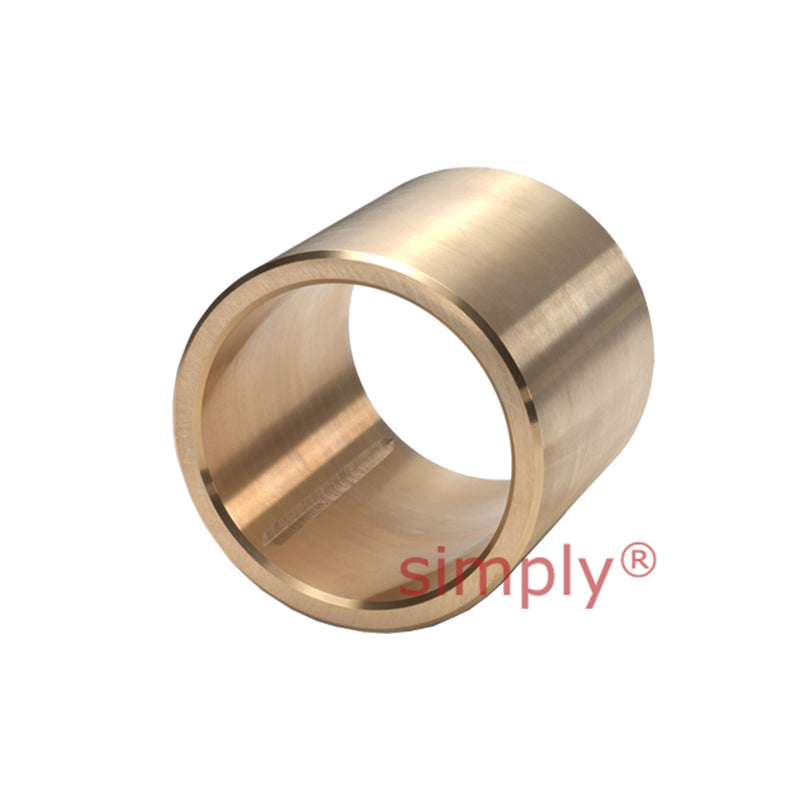

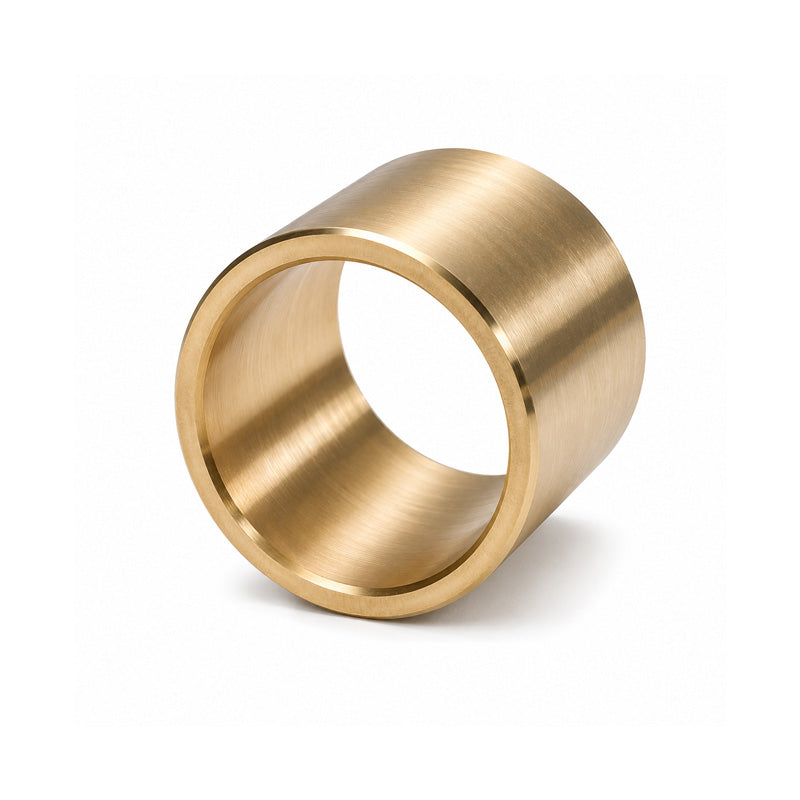

SKF PSM405040A51 Imperial Plain Sintered Bronze Bush 1.575x1.969x1.575 inch
SKF PSM405040A51 Imperial Plain Sintered Bronze Bush 1.575x1.969x1.575 inch
Regular price
CHF 39.00
ex VAT
Regular price
Sale price
CHF 39.00
ex VAT
In stock
Price Break
9+
CHF 30.53
19+
CHF 28.82
29+
CHF 28.47
39+
CHF 28.13
49+
CHF 27.79
69+
CHF 27.45
99+
CHF 25.73
199+
CHF 25.39
249+
CHF 25.04
499+
CHF 24.70
999+
CHF 24.01
Share this product
Description
Description
PSM/PSMF Bronze Bushing: SKF Sintered Bronze cylindrical bushings are all self-lubricating and maintenance-free. The sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, which makes the bushings suitable for rotating applications. SKF offers a full range of both plain and flanged cylindrical bushings. SKF Sintered Bronze bushings are most
suitable for applications with rotating movements and where the self-lubricating performance requirements are high.
Uses of Application electrical equipment, household equipment, printing machinery, machine tools
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm = 1.575 inch
- Outside Diameter:
- 50mm = 1.969 inch
- Length:
- 40mm = 1.575 inch
Technical
Technical
| d | 1.575 inch |
|---|---|
| D | 1.969 inch |
| B | 1.575 inch |
| Tolerance shaft | h8 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 1450.377 psi |
| Specific Static Load Factor ( K0 ) | 2900.755 psi |
| Permissable Sliding Velocity ( v ) | min. 49.213 ft/min |
| Permissable Sliding Velocity ( v ) | max. 984.252 ft/min |
| Coefficient of Friction ( y ) | min. 0.05 |
| Coefficient of Friction ( y ) | max. 0.1 |
| Imperial Weight | 0.165 lbs |
