SKU: PSM455545A51-SKF

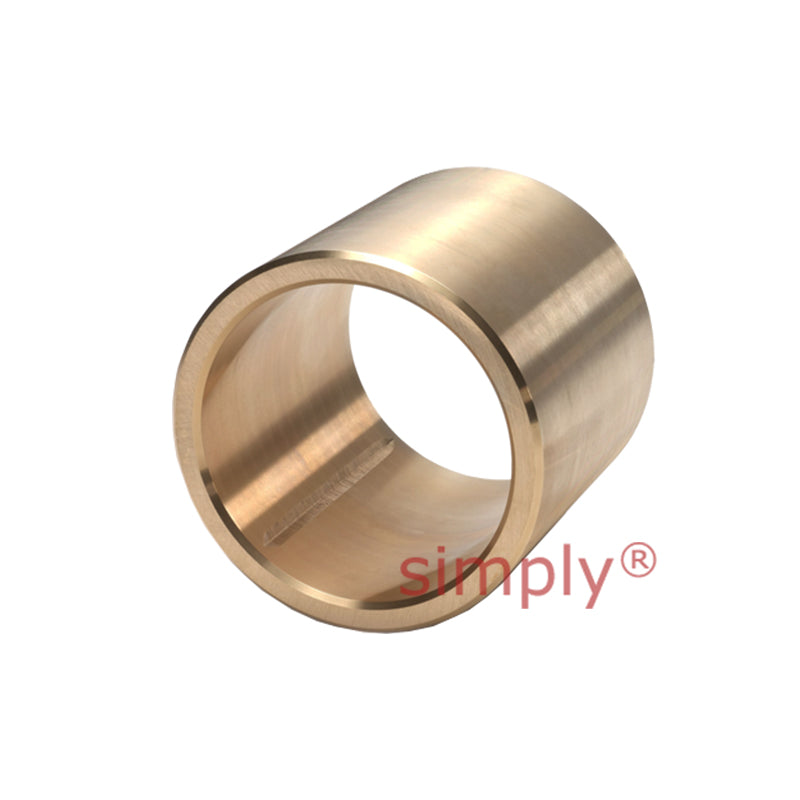

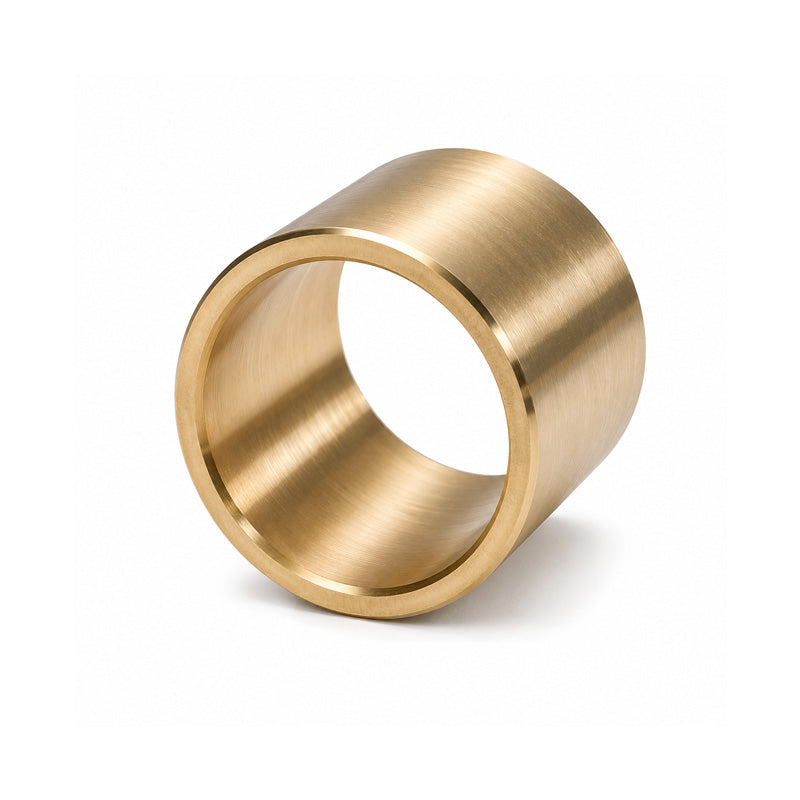

SKF PSM455545A51 Imperial Plain Sintered Bronze Bush 1.772x2.165x1.772 inch
SKF PSM455545A51 Imperial Plain Sintered Bronze Bush 1.772x2.165x1.772 inch
Regular price
CHF 51.00
ex VAT
Regular price
Sale price
CHF 51.00
ex VAT
In stock
Price Break
9+
CHF 39.93
19+
CHF 37.69
29+
CHF 37.24
39+
CHF 36.79
49+
CHF 36.34
69+
CHF 35.89
99+
CHF 33.65
199+
CHF 33.20
249+
CHF 32.75
499+
CHF 32.30
999+
CHF 31.40
Description
Description
PSM/PSMF Bronze Bushing: SKF Sintered Bronze cylindrical bushings are all self-lubricating and maintenance-free. The sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, which makes the bushings suitable for rotating applications. SKF offers a full range of both plain and flanged cylindrical bushings. SKF Sintered Bronze bushings are most
suitable for applications with rotating movements and where the self-lubricating performance requirements are high.
Uses of Application electrical equipment, household equipment, printing machinery, machine tools
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm = 1.772 inch
- Outside Diameter:
- 55mm = 2.165 inch
- Length:
- 45mm = 1.772 inch
Technical
Technical
| d | 1.772 inch |
|---|---|
| D | 2.165 inch |
| B | 1.772 inch |
| Tolerance shaft | h8 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 1450.377 psi |
| Specific Static Load Factor ( K0 ) | 2900.755 psi |
| Permissable Sliding Velocity ( v ) | min. 49.213 ft/min |
| Permissable Sliding Velocity ( v ) | max. 984.252 ft/min |
| Coefficient of Friction ( y ) | min. 0.05 |
| Coefficient of Friction ( y ) | max. 0.1 |
| Imperial Weight | 0.216 lbs |
