SKU: PSM506050A51-SKF

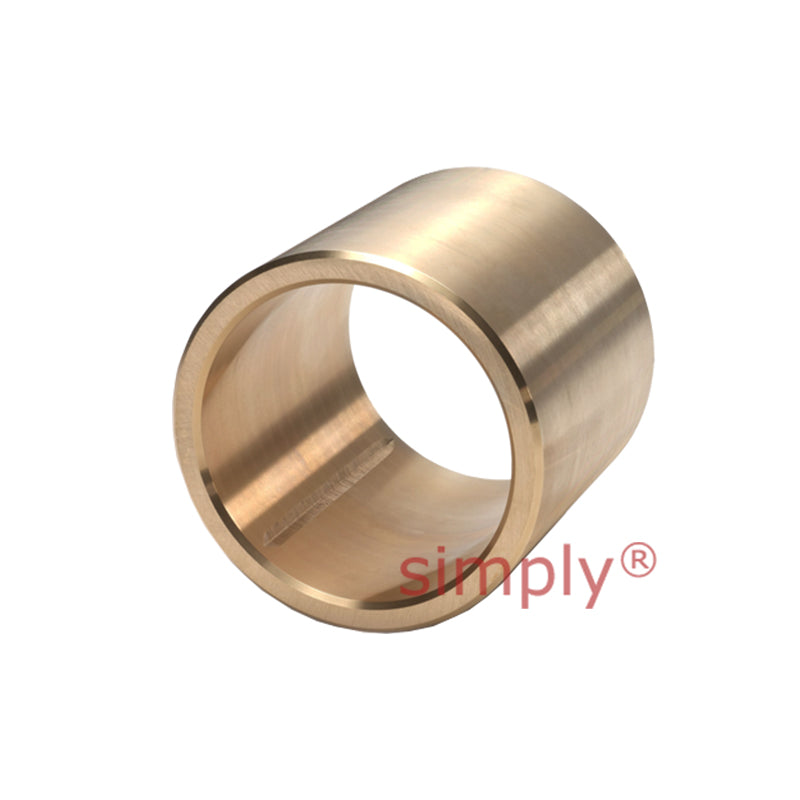

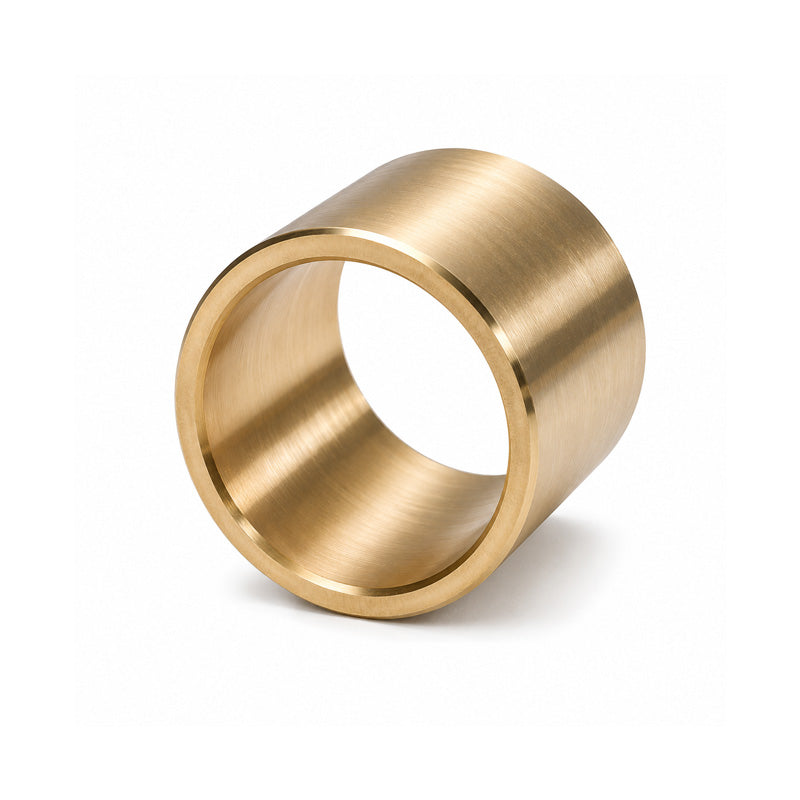

SKF PSM506050A51 Imperial Plain Sintered Bronze Bush 1.969x2.362x1.969 inch
SKF PSM506050A51 Imperial Plain Sintered Bronze Bush 1.969x2.362x1.969 inch
Regular price
CHF 62.00
ex VAT
Regular price
Sale price
CHF 62.00
ex VAT
In stock
Price Break
9+
CHF 48.84
19+
CHF 46.10
29+
CHF 45.55
39+
CHF 45.00
49+
CHF 44.45
69+
CHF 43.90
99+
CHF 41.16
199+
CHF 40.61
249+
CHF 40.06
499+
CHF 39.51
999+
CHF 38.42
Share this product
Description
Description
PSM/PSMF Bronze Bushing: SKF Sintered Bronze cylindrical bushings are all self-lubricating and maintenance-free. The sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, which makes the bushings suitable for rotating applications. SKF offers a full range of both plain and flanged cylindrical bushings. SKF Sintered Bronze bushings are most
suitable for applications with rotating movements and where the self-lubricating performance requirements are high.
Uses of Application electrical equipment, household equipment, printing machinery, machine tools
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm = 1.969 inch
- Outside Diameter:
- 60mm = 2.362 inch
- Length:
- 50mm = 1.969 inch
Technical
Technical
| d | 1.969 inch |
|---|---|
| D | 2.362 inch |
| B | 1.969 inch |
| Tolerance shaft | h8 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 1450.377 psi |
| Specific Static Load Factor ( K0 ) | 2900.755 psi |
| Permissable Sliding Velocity ( v ) | min. 49.213 ft/min |
| Permissable Sliding Velocity ( v ) | max. 984.252 ft/min |
| Coefficient of Friction ( y ) | min. 0.05 |
| Coefficient of Friction ( y ) | max. 0.1 |
| Imperial Weight | 0.419 lbs |
