SKU: PSMF081212A51-SKF

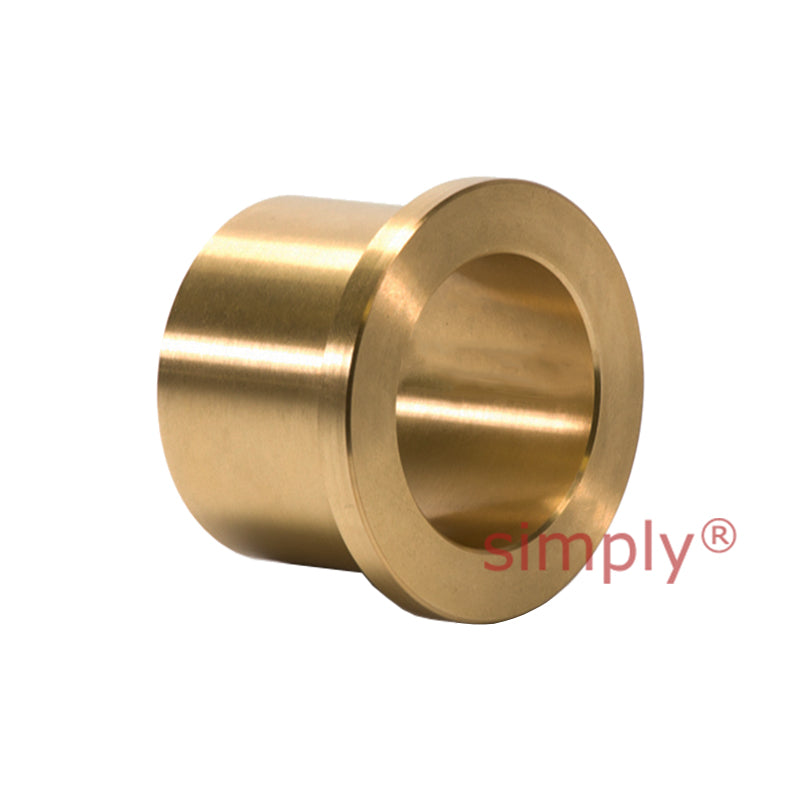

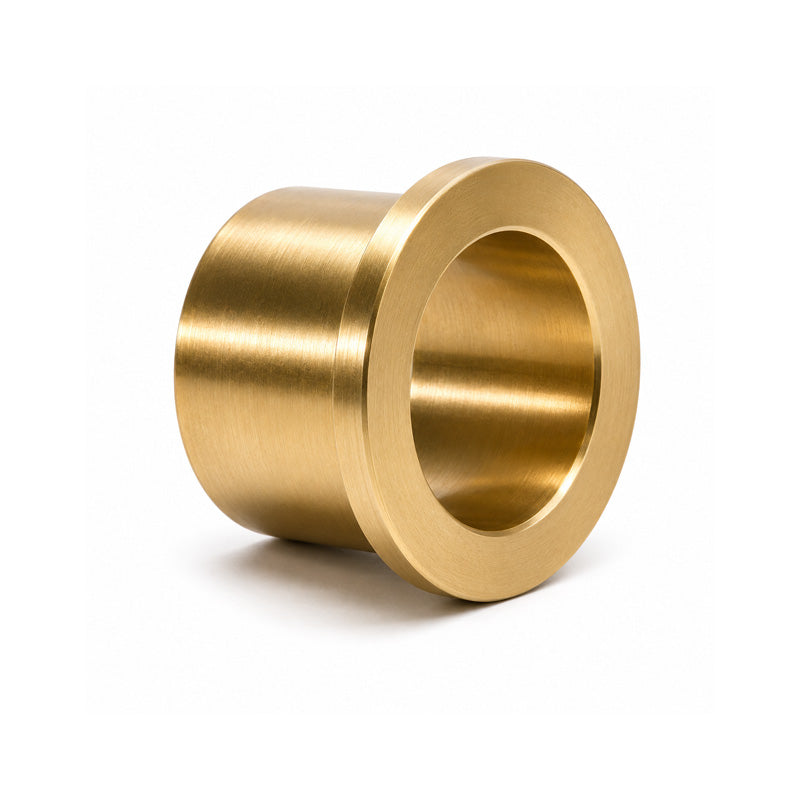

SKF PSMF081212A51 Metric Flanged Sintered Bronze Bush 8x12x12mm
SKF PSMF081212A51 Metric Flanged Sintered Bronze Bush 8x12x12mm
Regular price
CHF 7.00
ex VAT
Regular price
Sale price
CHF 7.00
ex VAT
In stock
Price Break
9+
CHF 4.98
19+
CHF 4.70
29+
CHF 4.64
39+
CHF 4.59
49+
CHF 4.53
69+
CHF 4.47
99+
CHF 4.19
199+
CHF 4.14
249+
CHF 4.08
499+
CHF 4.03
999+
CHF 3.92
Share this product
Description
Description
PSM/PSMF Bronze Bushing: SKF Sintered Bronze cylindrical bushings are all self-lubricating and maintenance-free. The sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, which makes the bushings suitable for rotating applications. SKF offers a full range of both plain and flanged cylindrical bushings. SKF Sintered Bronze bushings are most
suitable for applications with rotating movements and where the self-lubricating performance requirements are high.
Uses of Application electrical equipment, household equipment, printing machinery, machine tools
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 12mm
- Length:
- 12mm
Technical
Technical
| d | 8mm |
|---|---|
| D | 12mm |
| B | 12mm |
| D1 | 16mm |
| B1 | 2mm |
| Tolerance shaft | h8 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 10 N/mm 2 |
| Specific Static Load Factor ( K0 ) | 20 N/mm 2 |
| Permissable Sliding Velocity ( v ) | min. 0.25 m/s |
| Permissable Sliding Velocity ( v ) | max. 5 m/s |
| Coefficient of Friction ( y ) | min. 0.05 |
| Coefficient of Friction ( y ) | max. 0.1 |
| Weight | 0.003kg |
