SKU: PSMF354535A51-SKF

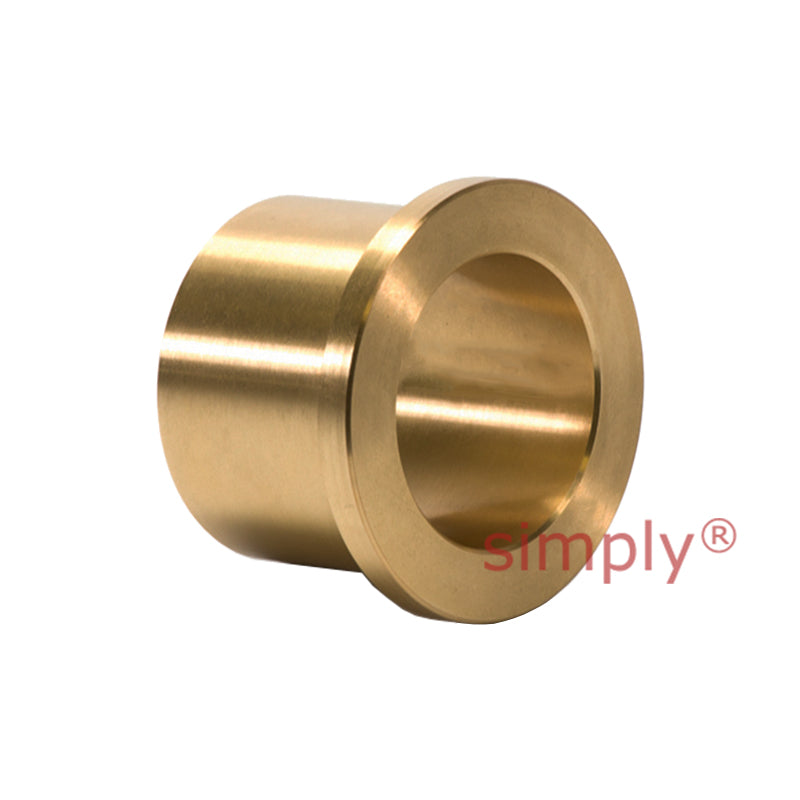

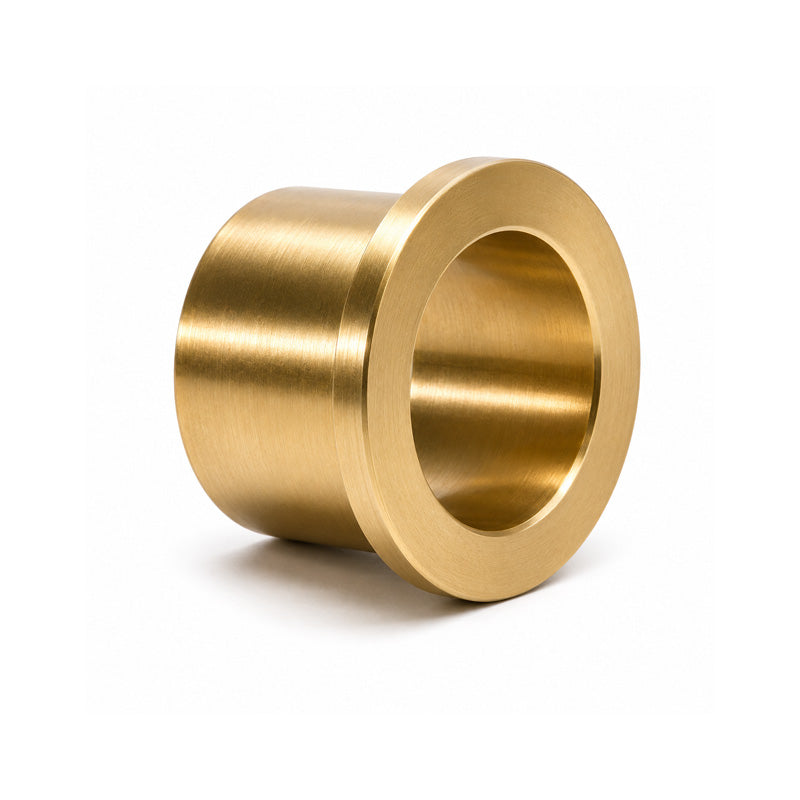

SKF PSMF354535A51 Imperial Flanged Sintered Bronze Bush 1.378x1.772x1.378 inch
SKF PSMF354535A51 Imperial Flanged Sintered Bronze Bush 1.378x1.772x1.378 inch
Regular price
CHF 42.00
ex VAT
Regular price
Sale price
CHF 42.00
ex VAT
In stock
Price Break
9+
CHF 32.70
19+
CHF 30.86
29+
CHF 30.49
39+
CHF 30.13
49+
CHF 29.76
69+
CHF 29.39
99+
CHF 27.56
199+
CHF 27.19
249+
CHF 26.82
499+
CHF 26.45
999+
CHF 25.72
Share this product
Description
Description
PSM/PSMF Bronze Bushing: SKF Sintered Bronze cylindrical bushings are all self-lubricating and maintenance-free. The sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, which makes the bushings suitable for rotating applications. SKF offers a full range of both plain and flanged cylindrical bushings. SKF Sintered Bronze bushings are most
suitable for applications with rotating movements and where the self-lubricating performance requirements are high.
Uses of Application electrical equipment, household equipment, printing machinery, machine tools
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm = 1.378 inch
- Outside Diameter:
- 45mm = 1.772 inch
- Length:
- 35mm = 1.378 inch
Technical
Technical
| d | 1.378 inch |
|---|---|
| D | 1.772 inch |
| B | 1.378 inch |
| D1 | 2.17 inch |
| B1 | 0.2 inch |
| Tolerance shaft | h8 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 1450.377 psi |
| Specific Static Load Factor ( K0 ) | 2900.755 psi |
| Permissable Sliding Velocity ( v ) | min. 49.213 ft/min |
| Permissable Sliding Velocity ( v ) | max. 984.252 ft/min |
| Coefficient of Friction ( y ) | min. 0.05 |
| Coefficient of Friction ( y ) | max. 0.1 |
| Imperial Weight | 0.221 lbs |
