SKU: PSMF506050A51-SKF

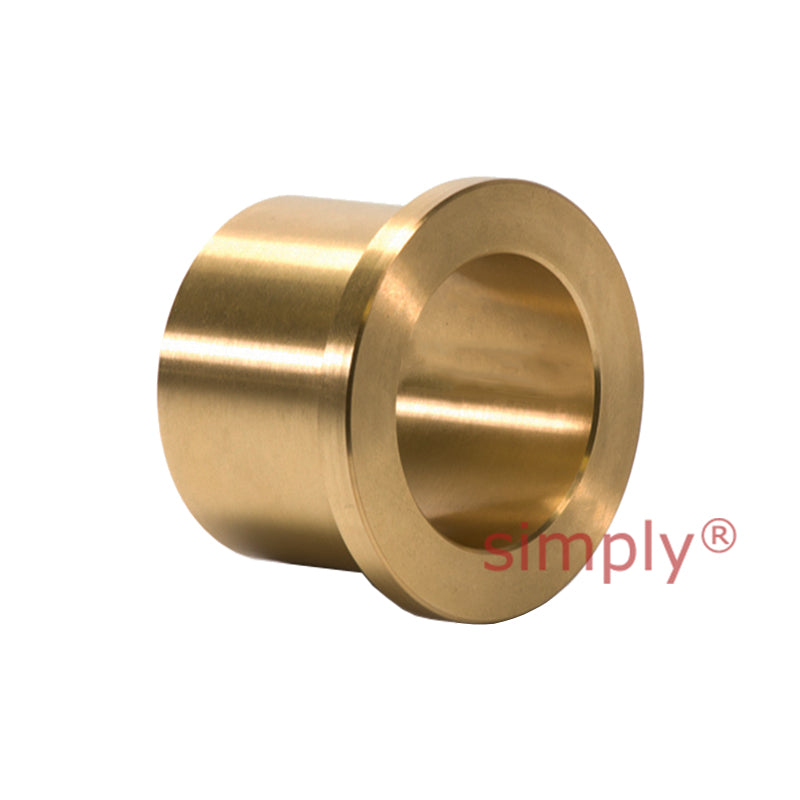

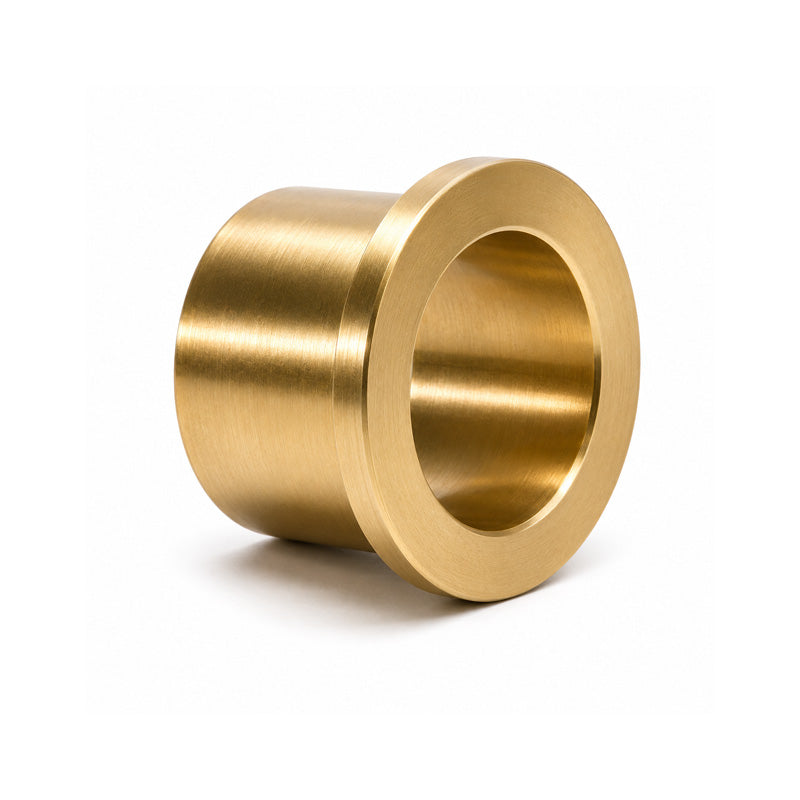

SKF PSMF506050A51 Imperial Flanged Sintered Bronze Bush 1.969x2.362x1.969 inch
SKF PSMF506050A51 Imperial Flanged Sintered Bronze Bush 1.969x2.362x1.969 inch
Regular price
CHF 78.00
ex VAT
Regular price
Sale price
CHF 78.00
ex VAT
In stock
Price Break
9+
CHF 61.58
19+
CHF 58.12
29+
CHF 57.43
39+
CHF 56.74
49+
CHF 56.05
69+
CHF 55.35
99+
CHF 51.90
199+
CHF 51.20
249+
CHF 50.51
499+
CHF 49.82
999+
CHF 48.44
Share this product
Description
Description
PSM/PSMF Bronze Bushing: SKF Sintered Bronze cylindrical bushings are all self-lubricating and maintenance-free. The sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, which makes the bushings suitable for rotating applications. SKF offers a full range of both plain and flanged cylindrical bushings. SKF Sintered Bronze bushings are most
suitable for applications with rotating movements and where the self-lubricating performance requirements are high.
Uses of Application electrical equipment, household equipment, printing machinery, machine tools
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm = 1.969 inch
- Outside Diameter:
- 60mm = 2.362 inch
- Length:
- 50mm = 1.969 inch
Technical
Technical
| d | 1.969 inch |
|---|---|
| D | 2.362 inch |
| B | 1.969 inch |
| D1 | 2.76 inch |
| B1 | 0.24 inch |
| Tolerance shaft | h8 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 1450.377 psi |
| Specific Static Load Factor ( K0 ) | 2900.755 psi |
| Permissable Sliding Velocity ( v ) | min. 49.213 ft/min |
| Permissable Sliding Velocity ( v ) | max. 984.252 ft/min |
| Coefficient of Friction ( y ) | min. 0.05 |
| Coefficient of Friction ( y ) | max. 0.1 |
| Imperial Weight | 0.441 lbs |
