• SNR Pump Coupling Connection with G 1/4 inch Thread - Allow 2-3 Days
1 1

SKU: PUMP-COUPLER-1/4-SNR

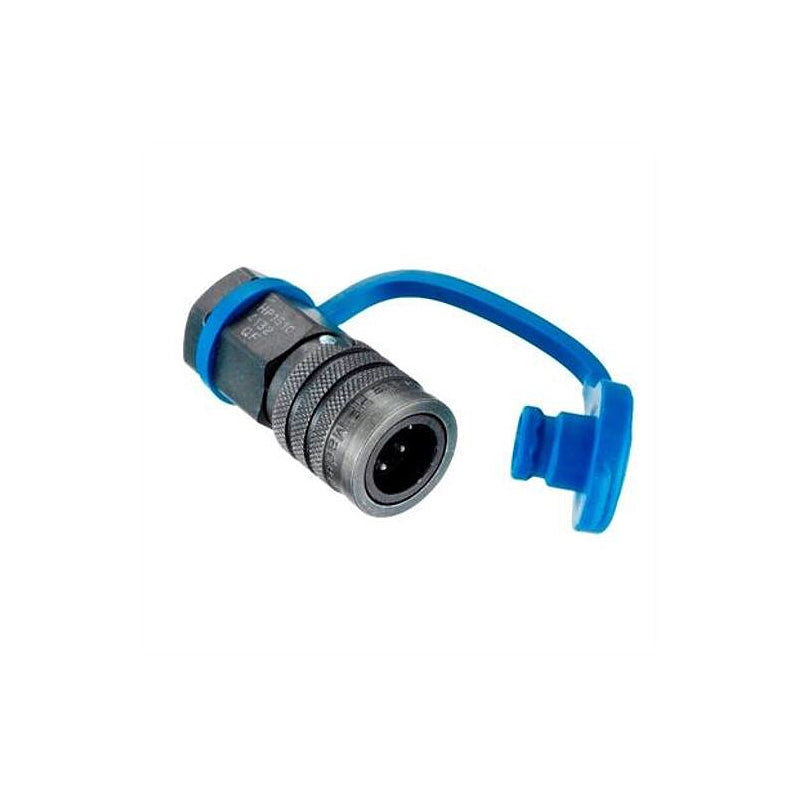

SNR Pump Coupling Connection with G 1/4 inch Thread - Allow 2-3 Days

SNR Pump Coupling Connection with G 1/4 inch Thread - Allow 2-3 Days
CHF 142.00 ex VAT
CHF 142.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 112.95
5+ CHF 106.61
9+ CHF 105.34
19+ CHF 104.07
49+ CHF 102.80
74+ CHF 101.53
99+ CHF 95.19
199+ CHF 93.92
249+ CHF 92.65
499+ CHF 91.38
999+ CHF 88.84
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

SNR Coupling Connection: This replacement coupling/connector is compatible with the PUMP 700 bar Hydraulic Pump Kit which is available seperately.

Brand / Quality:
SNR - High Quality

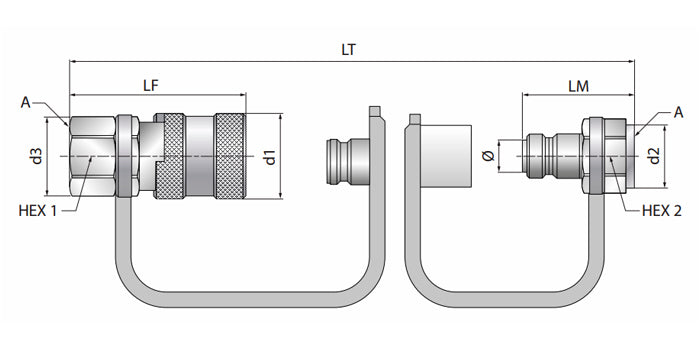

Technical
Thread G 1/4 inch
d1 28.2mm
d3 26.8mm
Nut Hex 1 24mm
LF 59.5mm
d2 24.5mm
Nut Hex 2 22mm
LM 38
LT 79.5mm
Nipple Diameter 14.9mm
Reference Female Tool+ Pump Coupling 1/4 inch
Weight 0.192kg
Referance Male Tool+ HMV Nipple 1/4 inch
Weight 0.069kg
