SKU: PV150100_A

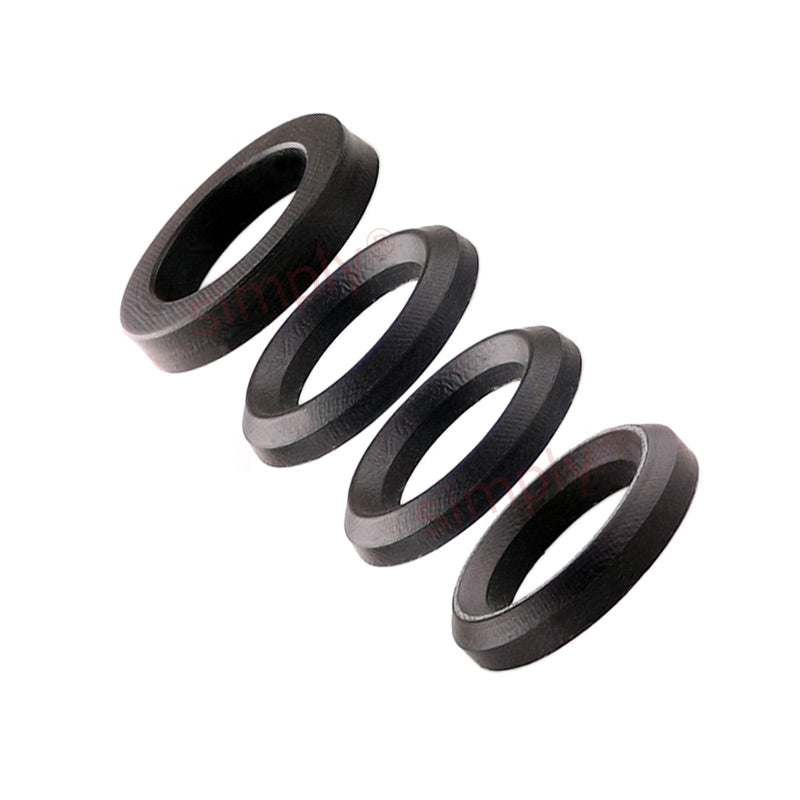

Budget PV150100A Imperial Nitrile PV Type Single Acting Rod Seal 1x1.5x0.75 inch
Budget PV150100A Imperial Nitrile PV Type Single Acting Rod Seal 1x1.5x0.75 inch
Regular price
CHF 49.68
ex VAT
Regular price
Sale price
CHF 49.68
ex VAT
In stock
Price Break
5+
CHF 49.18
10+
CHF 47.20
20+
CHF 46.20
50+
CHF 44.71
100+
CHF 43.72
500+
CHF 41.23
1000+
CHF 34.78
Couldn't load pickup availability
Description
Description

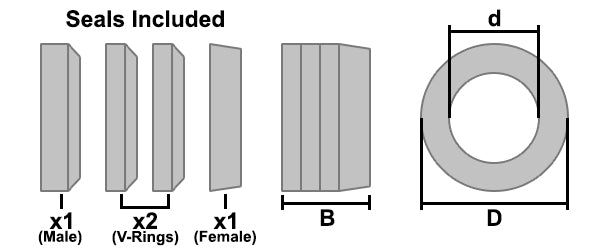

PV Type Single Acting Rod Seals: These rod/piston PV seals are suitable for medium to heavy duty applications. This assembly of seals consists of x1 male seal, x1 female seal and x2 v-rings which are all made from NBR Nitrile. The assembled height can be adjustable by removing the appropriate amount of v-seals that suits your application. The temperature range for this product is from -30 deg C - +100 deg C.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Inside Diameter (d) | 1 inch |
|---|---|
| Outside Diameter (D) | 1.5 inch |
| Width (B) | 0.75 inch |
| Weight | 0.015 kg |
