SKU: PWKR72.2RS-EU
Budget PWKR722RS Crowned Cam Follower 72x28x24 M24x1.5 Thread
Budget PWKR722RS Crowned Cam Follower 72x28x24 M24x1.5 Thread
Regular price
CHF 165.76
ex VAT
Regular price
Sale price
CHF 165.76
ex VAT
In stock
Price Break
10+
CHF 147.53
19+
CHF 139.24
29+
CHF 137.58
39+
CHF 135.92
49+
CHF 134.27
74+
CHF 132.61
99+
CHF 124.32
199+
CHF 122.66
249+
CHF 121.00
499+
CHF 119.35
999+
CHF 116.03
Couldn't load pickup availability
Description
Description
PWKR Series Crowned Cam Followers: Fitted with rubber seals are designed for use in arduous conditions, the outer ring having three flanges to provide axial guidance and to separate the two rows of full complement needle roller bearings and permitting a thick outer ring allowing for heavy loads and shock to be supported. Resultant of the three-flange design there is a larger gap between the needle rollers permitting grease flow and cooler running operation, especially in inclined operation. |
- Brand / Quality:
- EU Budget - Economy Quality
- Outside Diameter:
- 72mm
- Width:
- 28mm
- Pitch:
- M24x1.5
Technical
Technical

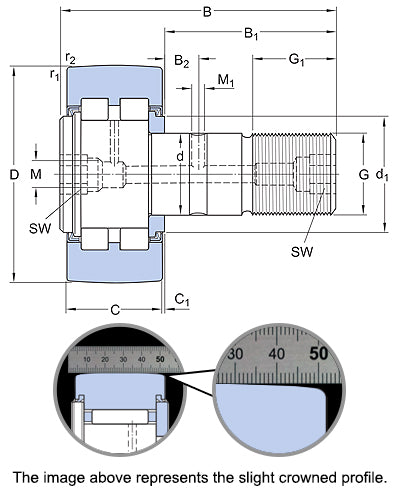

| D | 72mm |
|---|---|
| C | 28mm |
| d (Stud Diameter) | 24mm |
| B | 80mm |
| B1 | 49.5mm |
| B2 | 11mm |
| C1 | 1.3mm |
| d1 | 44mm |
| G | M24x1.5 |
| G1 | 25mm |
| M1 | 4mm |
| r min | 1.1mm |
| SW | 14mm |
| Dynamic load | 39600 N |
| Static load | 45000 N |
| Fatigue load limit Pu | 5600 N |
| Radial dynamic load | 47500 N |
| Radial static load | 68000 N |
| Speed rating | 2200 rpm |
| Weight | 1020 g |
