SKU: PWKRE40.2RS-EU

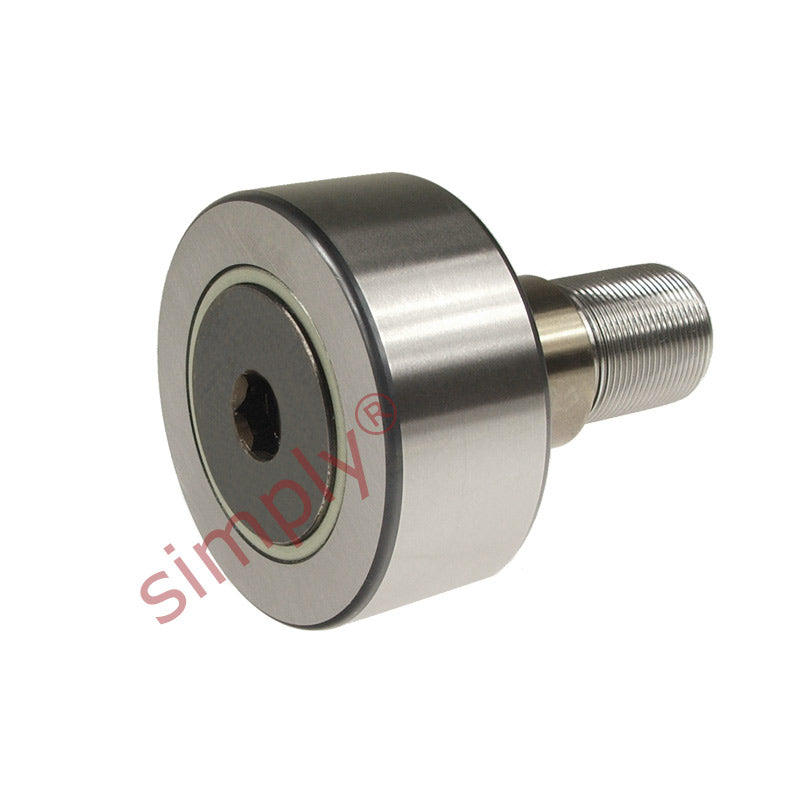

Budget PWKRE402RS Crowned Cam Follower with Eccentric Stud 40x20x22 M18x1.5 Thread
In stock
Price Break
Couldn't load pickup availability
Description
PWKRE Series Crowned Cam Followers: Differ from the PWKR by the addition of a shrink-fit eccentric collar fitted to the stud. Fitted with rubber seals designed for use in arduous conditions, the outer ring has three flanges to provide axial guidance and to separate the two rows of full complement needle roller bearings and permitting a thick outer ring allowing for heavy loads and shock to be supported. Resultant of the three-flange design there is a larger gap between the needle rollers permitting grease flow and cooler running operation, especially in inclined operation. |
- Brand / Quality:
- EU Budget - Economy Quality
- Outside Diameter:
- 40mm
- Width:
- 20mm
- Pitch:
- M18x1.5
Technical
| D | 40mm |
|---|---|
| C | 20mm |
| d (Stud Diameter) | 22mm |
| B | 58mm |
| B1 | 33.5mm |
| C1 | 3.8mm |
| d1 | 30mm |
| G | M18x1.5 |
| G1 | 19mm |
| r min | 1mm |
| SW | 8mm |
| Eccentric stud c | 1mm |
| B3 | 14mm |
| Dynamic load | 13800 N |
| Static load | 14300 N |
| Fatigue load limit Pu | 1500 N |
| Radial dynamic load | 13700 N |
| Radial static load | 19600 N |
| Speed rating | 5000 rpm |
| Weight | 260 g |
