SKU: QJM1-7/8-EU

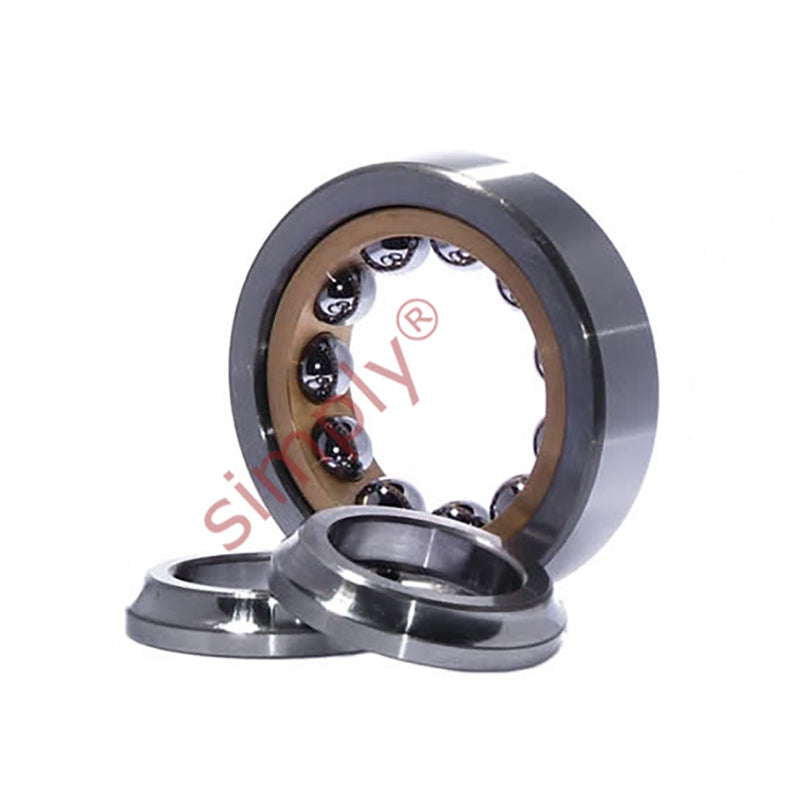

Premier Budget Brass Caged Imperial QJM1-7/8 Four Point Contact Ball Bearing 1-7/8x4-1/2x1-1/16 inch
Premier Budget Brass Caged Imperial QJM1-7/8 Four Point Contact Ball Bearing 1-7/8x4-1/2x1-1/16 inch
Regular price
CHF 409.00
ex VAT
Regular price
Sale price
CHF 409.00
ex VAT
Equivalent to: DMJT1-7/8 M14.1/2CDS QJM1-7/8M
In stock
Price Break
10+
CHF 325.49
19+
CHF 307.20
29+
CHF 303.55
39+
CHF 299.89
49+
CHF 296.23
74+
CHF 292.58
99+
CHF 274.29
199+
CHF 270.63
249+
CHF 266.98
499+
CHF 263.32
999+
CHF 256.00
Description
Description
Imperial Four Point Contact Ball Bearings: Are radial single-row angular contact ball bearings with raceways that are designed to tolerate axial load in both directions. The inner raceways of these bearings are separable for ease of mounting. This style of bearing takes up considerably less space than the double-row ball bearing of equivalent bore size.
Benefits: Supports axial loads in both directions, ease of mounting, brass caged.
- Brand / Quality:
- Premier Budget - High Quality
- Inside Diameter:
- 47.63mm = 1.875 (1-7/8) inch
- Outside Diameter:
- 114.3mm = 4.5 (4-1/2) inch
- Width:
- 26.99mm = 1.063 (1-1/16) inch
Technical
Technical
| Inside Diameter d | 1-7/8 inch |
|---|---|
| Outside Diameter D | 4-1/2 inch |
| Width B | 1-1/16 inch |
| Dynamic load C | 73300N |
| Static load Co | 49200N |
| Weight | 1.52 kg |
