SKU: QJM2-3/4-EU

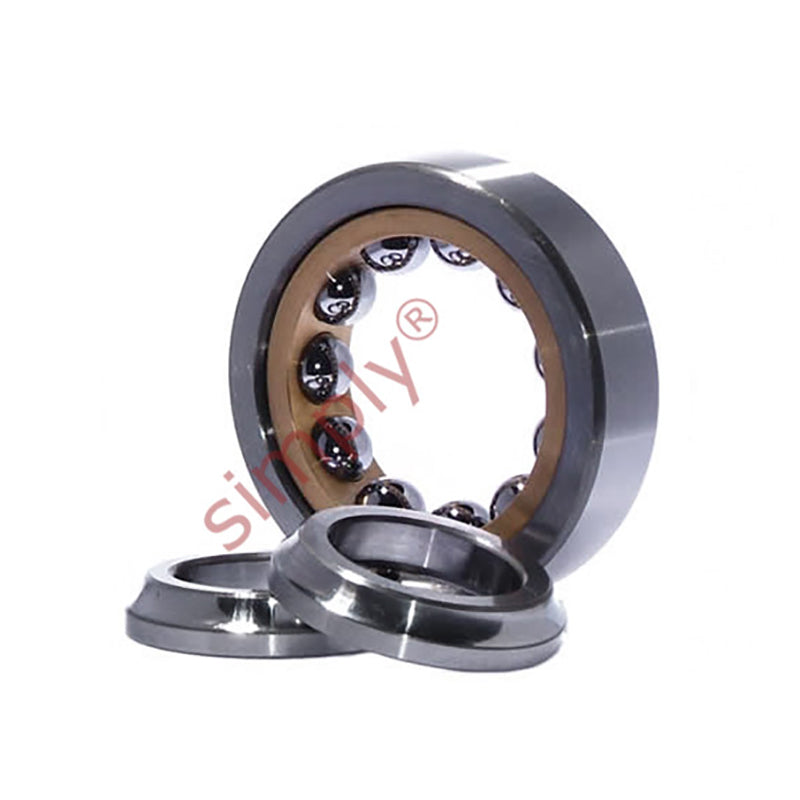

Premier Budget Brass Caged Imperial QJM2-3/4 Four Point Contact Ball Bearing 2-3/4x6-1/4x1-3/8 inch
Premier Budget Brass Caged Imperial QJM2-3/4 Four Point Contact Ball Bearing 2-3/4x6-1/4x1-3/8 inch
Regular price
CHF 623.16
ex VAT
Regular price
Sale price
CHF 623.16
ex VAT
Equivalent to: DMJT2-3/4 M18CDS QJM2-3/4M
In stock
Price Break
10+
CHF 554.61
19+
CHF 523.45
29+
CHF 517.22
39+
CHF 510.99
49+
CHF 504.76
74+
CHF 498.53
99+
CHF 467.37
199+
CHF 461.14
249+
CHF 454.91
499+
CHF 448.68
999+
CHF 436.21
Couldn't load pickup availability
Description
Description
Imperial Four Point Contact Ball Bearings: Are radial single-row angular contact ball bearings with raceways that are designed to tolerate axial load in both directions. The inner raceways of these bearings are separable for ease of mounting. This style of bearing takes up considerably less space than the double-row ball bearing of equivalent bore size.
Benefits: Supports axial loads in both directions, ease of mounting, brass caged.
Equivalent: DMJT2-3/4 M18CDS QJM2-3/4M
- Brand / Quality:
- Premier Budget - High Quality
- Inside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
- Outside Diameter:
- 158.75mm = 6.25 (6-1/4) inch
- Width:
- 34.93mm = 1.375 (1-3/8) inch
Technical
Technical
| Inside Diameter d | 2-3/4 inch |
|---|---|
| Outside Diameter D | 6-1/4 inch |
| Width B | 1-3/8 inch |
| Dynamic load C | 124600N |
| Static load Co | 101800N |
| Weight | 3.69 kg |
