SKU: QRFF-16-HQ19-MB

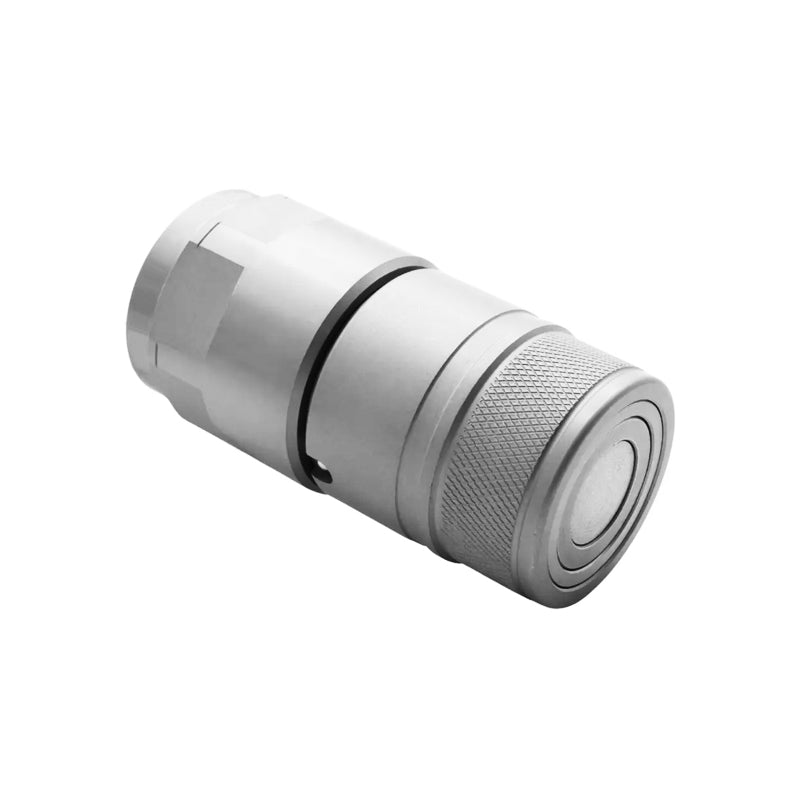

1 inch BSP Female Flat Face Quick Release Coupling - Allow 2-3 Days
1 inch BSP Female Flat Face Quick Release Coupling - Allow 2-3 Days
Regular price
CHF 79.00
ex VAT
Regular price
Sale price
CHF 79.00
ex VAT
In stock
Price Break
3+
CHF 62.61
5+
CHF 59.09
9+
CHF 58.39
19+
CHF 57.69
49+
CHF 56.98
74+
CHF 56.28
99+
CHF 52.76
199+
CHF 52.06
249+
CHF 51.36
499+
CHF 50.65
999+
CHF 49.24
Share this product
Description
Description
BSP Female Flat Face Quick Release Coupling: These couplings offer leak-free performance in high-pressure and hammer circuit applications. Made from durable carbon steel with zinc-nickel plating, these couplings resist corrosion and ensure longevity. Their flat-face design minimises air and contaminant inclusion while preventing fluid loss during disconnection. A safety locking sleeve prevents accidental disconnection and they also allow bidirectional flow, making them ideal for industrial, construction, and agricultural uses.
Benefits: Durable, safe and convenient, leak-free performance.
- Brand / Quality:
- Simply Quick Release Couplings - High Quality
- Thread Size:
- 1 inch BSP
- Length:
- 99mm
- Max Working Pressure:
- 350 bar
Technical
Technical

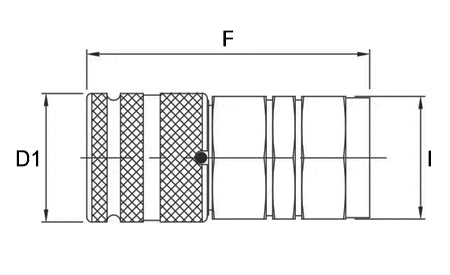

| Thread Size | 1 inch |
|---|---|
| Body Size (D1) | 48mm |
| Total Length (F) | 99mm |
| Nut Size (I) | 46mm |
| Maximum Working Pressure | 350 bar |
| Coupled Burst Pressure | 1450 bar |
| Female Burst Pressure | 1050 bar |
| Rated Flow | 100 lpm |
| Material | Zinc-Nickel Coated Steel |
| Weight | 0.978 kg |
