SKU: RA107-NPP-INA

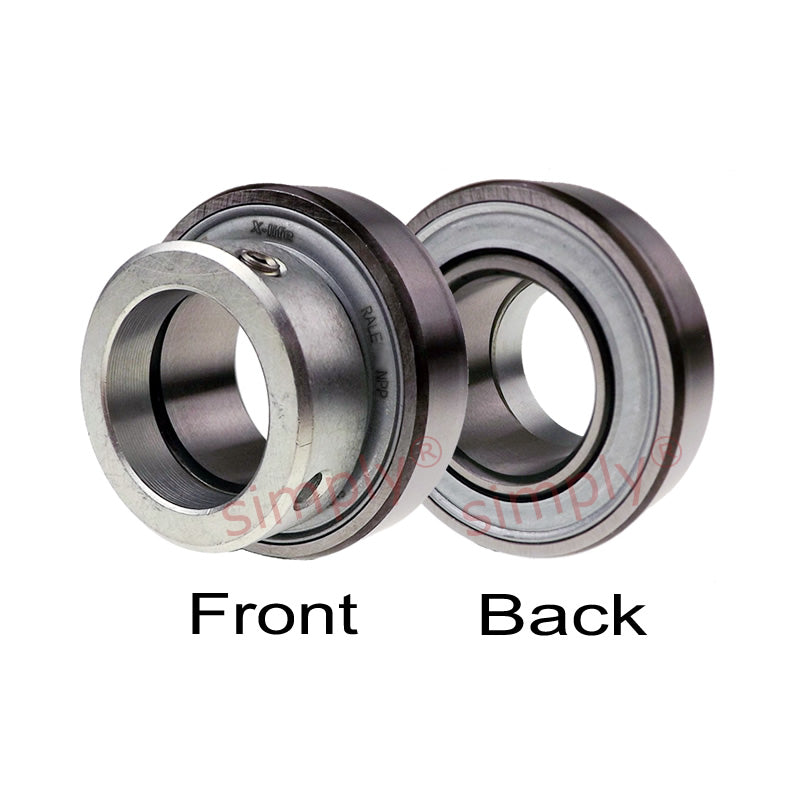

INA RA107NPP Imperial Parallel Outer Bearing Insert with P Seals Eccentric Collar 36.51x72x39mm
INA RA107NPP Imperial Parallel Outer Bearing Insert with P Seals Eccentric Collar 36.51x72x39mm
Regular price
CHF 37.78
ex VAT
Regular price
Sale price
CHF 37.78
ex VAT
In stock
Price Break
10+
CHF 33.62
19+
CHF 31.74
29+
CHF 31.36
39+
CHF 30.98
49+
CHF 30.60
74+
CHF 30.22
99+
CHF 28.34
199+
CHF 27.96
249+
CHF 27.58
499+
CHF 27.20
999+
CHF 26.45
Couldn't load pickup availability
Description
Description
|
INA RA..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Outside Diameter:
- 72mm
- Width:
- 39mm
- Type:
- Parallel Outer
Technical
Technical
| d | 36.51mm |
|---|---|
| d | 1-7/16 inch |
| D | 72mm |
| B1 | 39mm |
| B | 25.4mm |
| C | 19mm |
| d2 | 44.6mm |
| d3 max | 51mm |
| S | 9.5mm |
| W | 3/16 inch |
| Dynamic load Cr | 25500 N |
| Static load C0r | 15300 N |
| Weight | 0.48 kg |
