SKU: RA45-XL-INA

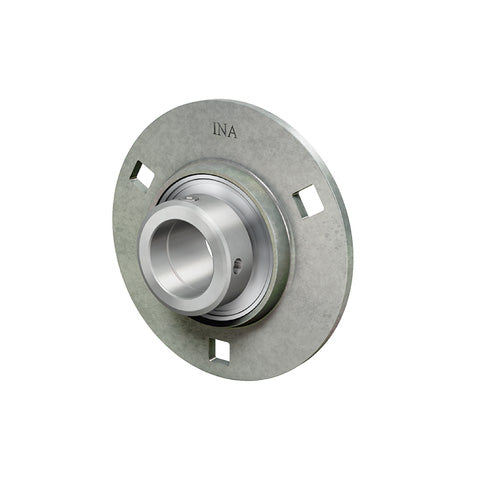

INA RA45XL Four Bolt Sheet Steel Round Housing with Eccentric Collar Insert 45mm Bore
INA RA45XL Four Bolt Sheet Steel Round Housing with Eccentric Collar Insert 45mm Bore
Regular price
CHF 59.00
ex VAT
Regular price
Sale price
CHF 59.00
ex VAT
In stock
Price Break
4+
CHF 46.42
9+
CHF 43.81
19+
CHF 43.29
29+
CHF 42.77
39+
CHF 42.25
49+
CHF 41.73
59+
CHF 39.12
69+
CHF 38.60
79+
CHF 38.08
89+
CHF 37.56
99+
CHF 36.51
Description
Description
|
INA Round Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft. The housings are screw mounted on the adjacent construction. Benefits: Suitable for a lightweight construction, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 45mm
- Style:
- RA
- Pitch Circle Diameter:
- 120.5mm
Technical
Technical
| d | 45mm |
|---|---|
| H | 149.2mm |
| B1 | 43.8mm |
| A | 11.1mm |
| d3 max | 63mm |
| J | 120.5mm |
| N | 13.5mm |
| Number of screw holes | 4 |
| S | 3.5mm |
| U | 36.2mm |
| V | 95 |
| Mass | 1.41 kg |
| Load carrying capacity of housing Cor G | 7700 N |
| Basic dynamic load rating Cr | 34500 N |
| Basic static load rating Cor | 20400 N |
| Designation of housing | FLAN85-MSB (2 X) |
| Designation of bearing | GRAE45-XL-NPP-B |
