SKU: RABRA30/62-FA106-INA

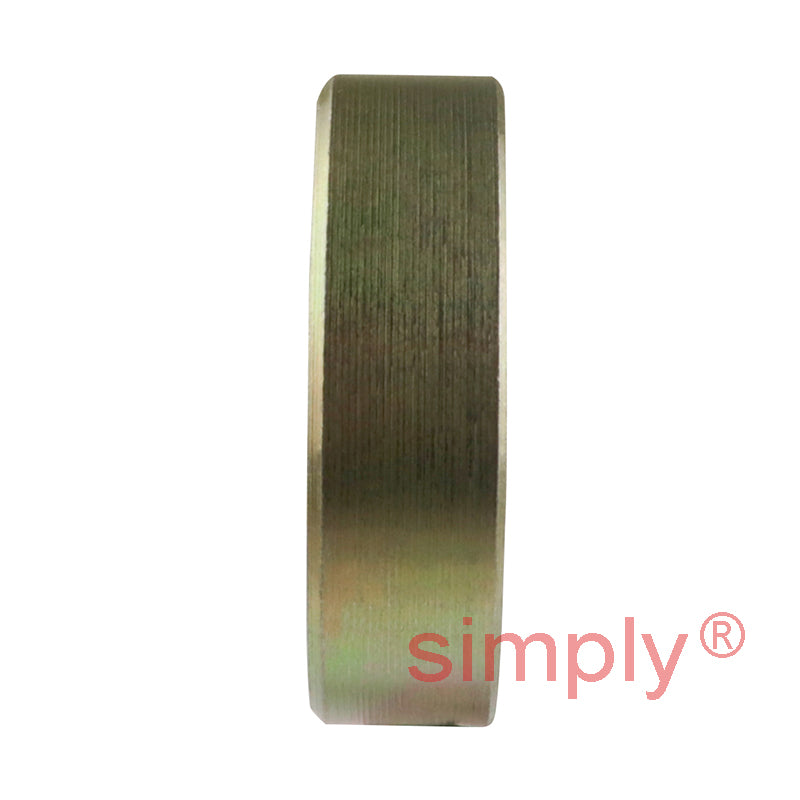

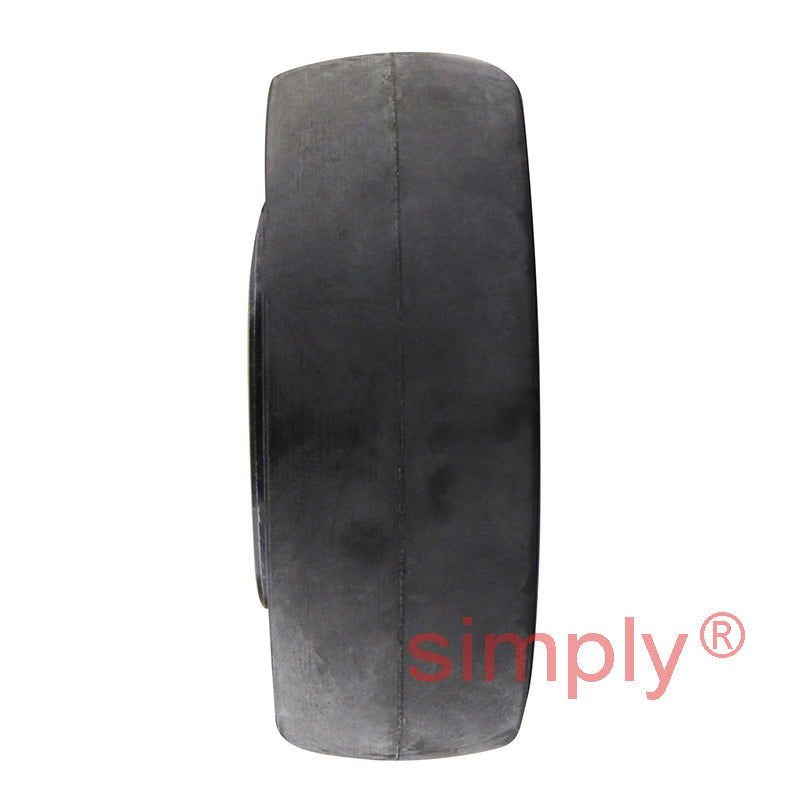

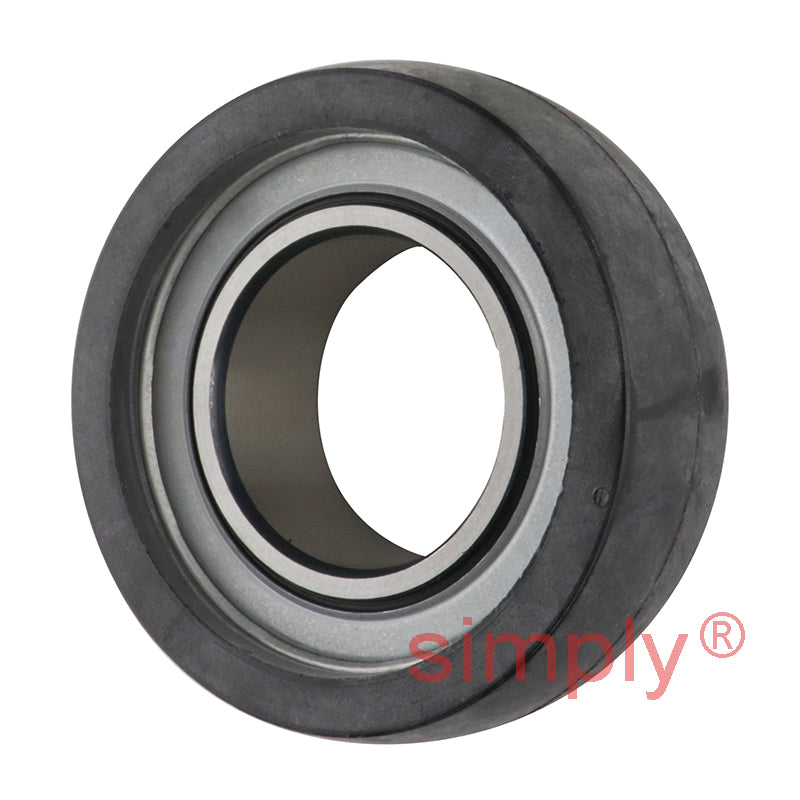

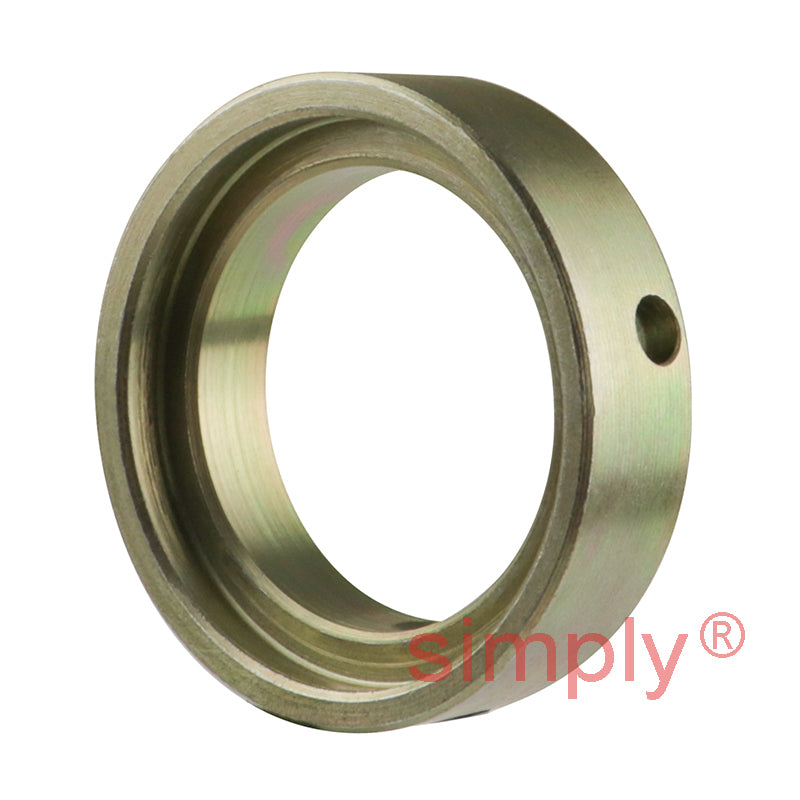

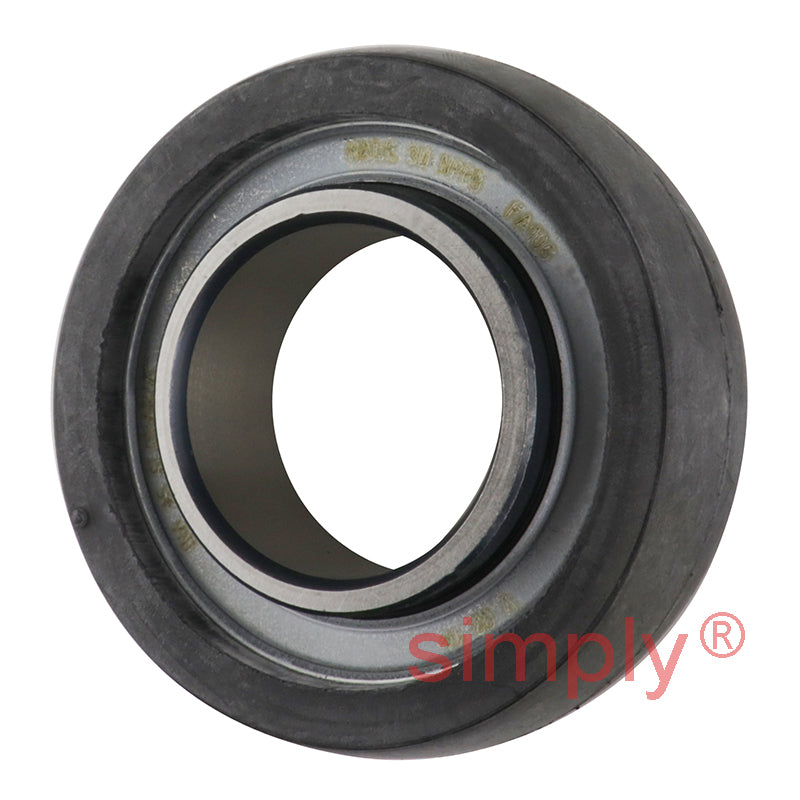

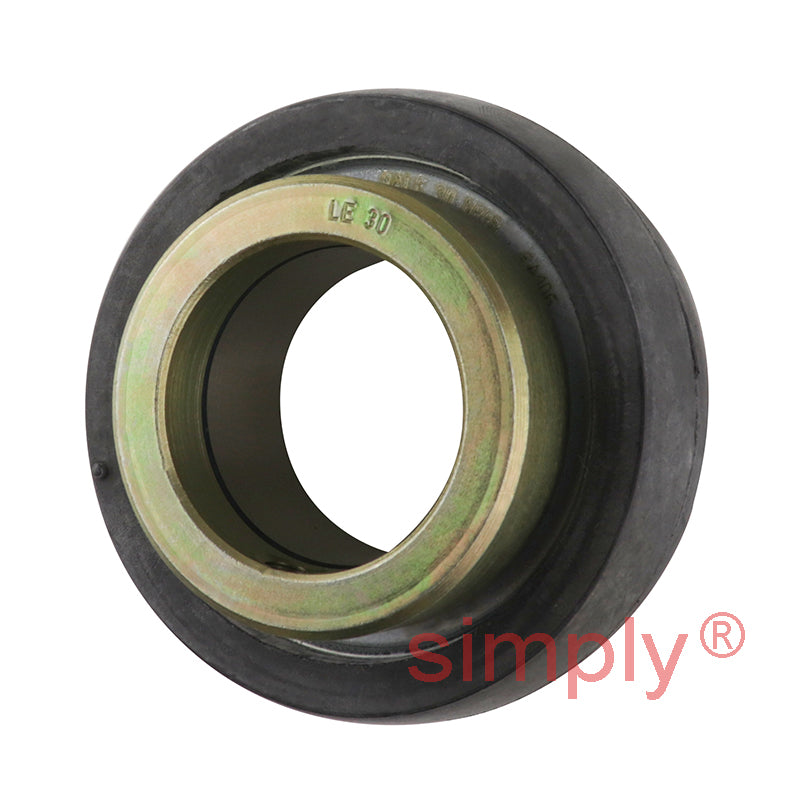

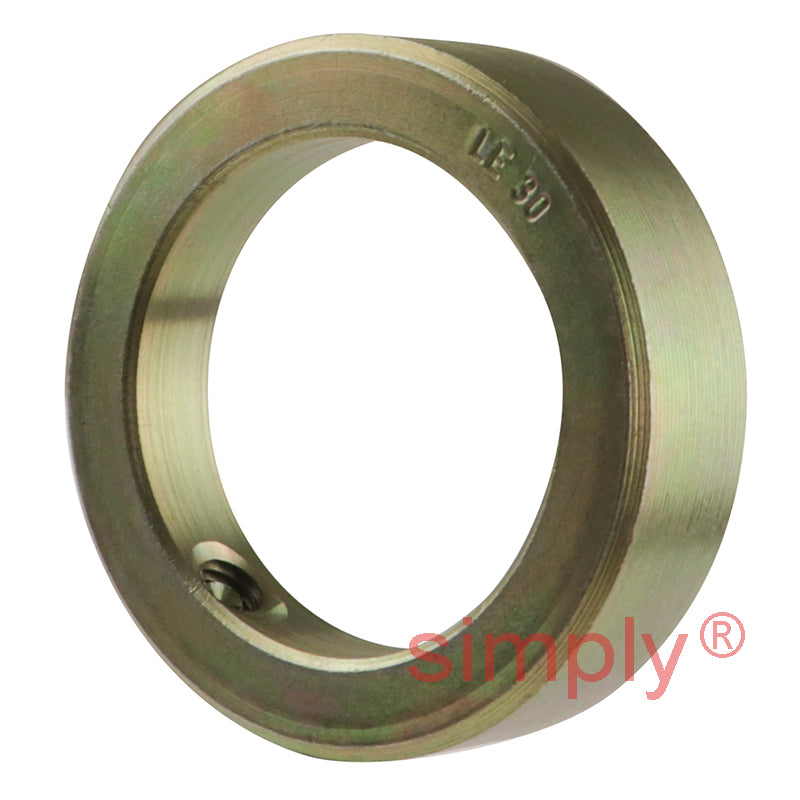

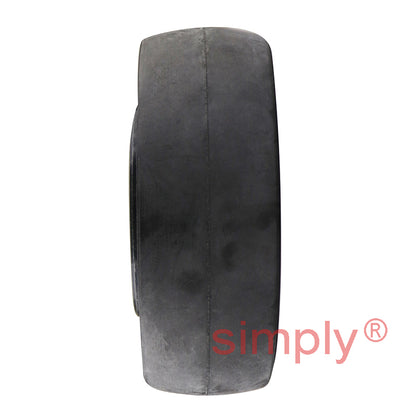

INA RABRA30/62XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 30x62.2x30.4mm
INA RABRA30/62XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 30x62.2x30.4mm
Regular price
CHF 47.47
ex VAT
Regular price
Sale price
CHF 47.47
ex VAT
In stock
Price Break
10+
CHF 42.25
19+
CHF 39.87
29+
CHF 39.40
39+
CHF 38.93
49+
CHF 38.45
74+
CHF 37.98
99+
CHF 35.60
199+
CHF 35.13
249+
CHF 34.65
499+
CHF 34.18
999+
CHF 33.23
Couldn't load pickup availability
Description
Description
|
INA RABRA and RABRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62.2mm
- Width:
- 30.4mm
- Type:
- Spherical Outer
Technical
Technical
| d | 30mm |
|---|---|
| D | 62.2mm |
| B2 | 30.4mm |
| B1 | 26.5mm |
| C | 20.8mm |
| D2 | 47mm |
| d3 max | 42.5mm |
| S1 | 20mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 70 deg |
| Rubber ring: load carrying capacity Cg | 1390 N |
| Dynamic load Cr | 13200 N |
| Static load C0r | 8300 N |
| Designation of rubber interliner | RABR55/62 |
| Designation of bearing | RALE30-NPP-B-FA106 |
| Weight | 0.3 kg |
