SKU: RABRB12/47-FA106-INA

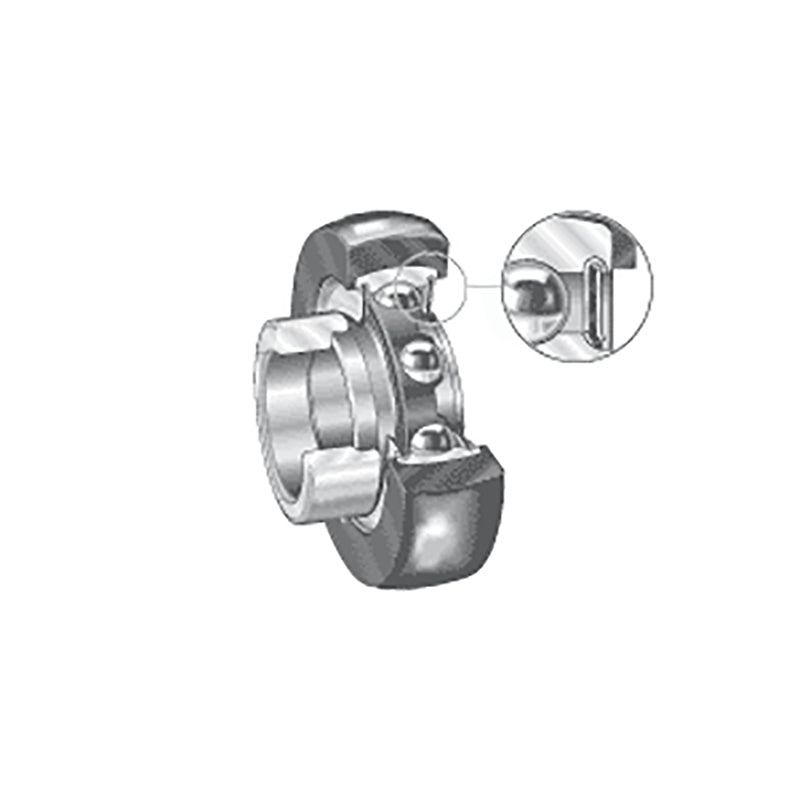

INA RABRB12/47XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 12x47.3x30.9mm
INA RABRB12/47XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 12x47.3x30.9mm
Regular price
CHF 31.00
ex VAT
Regular price
Sale price
CHF 31.00
ex VAT
In stock
Price Break
3+
CHF 24.72
5+
CHF 23.33
10+
CHF 23.05
15+
CHF 22.77
20+
CHF 22.49
30+
CHF 22.22
40+
CHF 20.83
50+
CHF 20.55
60+
CHF 20.27
75+
CHF 19.99
100+
CHF 19.44
Description
Description
|
INA RABRA and RABRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 47.3mm
- Width:
- 30.9mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 47.3mm |
| B2 | 30.9mm |
| B1 | 28.6mm |
| C | 17.6mm |
| D2 | 33.5mm |
| d3 max | 28mm |
| S1 | 22.1mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 70 deg |
| Rubber ring: load carrying capacity Cg | 840 N |
| Dynamic load Cr | 9800 N |
| Static load C0r | 4750 N |
| Designation of rubber interliner | RABR39/46 |
| Designation of bearing | RAE12-NPP-B-FA106 |
| Weight | 0.15 kg |
