SKU: RABRB20/52-FA106-INA
INA RABRB20/52XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x52.3x32.3mm
INA RABRB20/52XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x52.3x32.3mm
Regular price
CHF 34.44
ex VAT
Regular price
Sale price
CHF 34.44
ex VAT
In stock
Price Break
10+
CHF 30.65
19+
CHF 28.93
29+
CHF 28.59
39+
CHF 28.24
49+
CHF 27.90
74+
CHF 27.55
99+
CHF 25.83
199+
CHF 25.49
249+
CHF 25.14
499+
CHF 24.80
999+
CHF 24.11
Couldn't load pickup availability
Description
Description
|

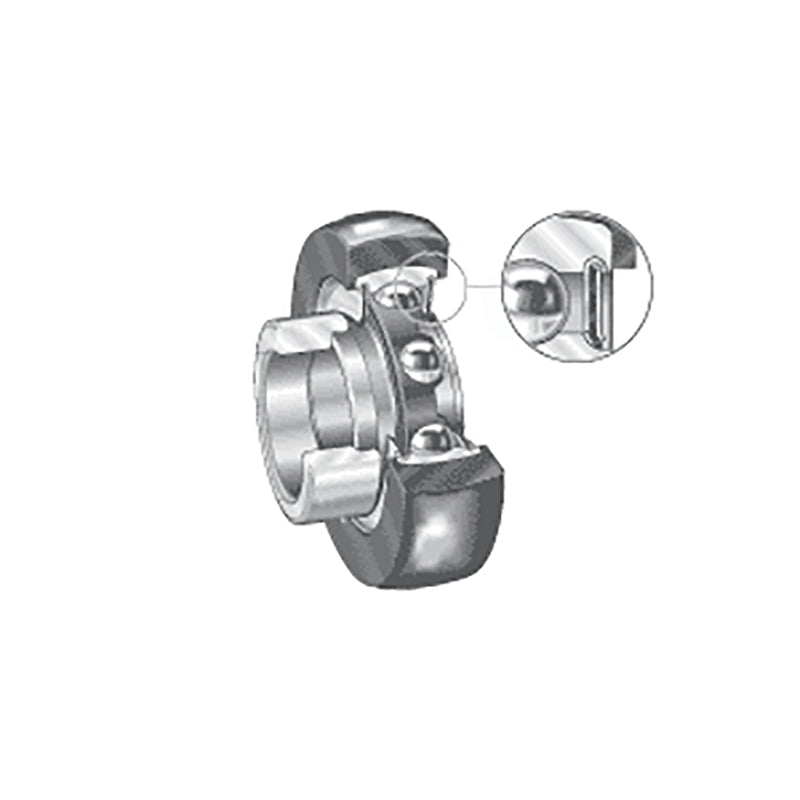

INA RABRA and RABRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52.3mm
- Width:
- 32.3mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 52.3mm |
| B2 | 32.3mm |
| B1 | 31mm |
| C | 17.6mm |
| D2 | 39mm |
| d3 max | 33mm |
| S1 | 23.5mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 70 deg |
| Rubber ring: load carrying capacity Cg | 1160 N |
| Dynamic load Cr | 12800 N |
| Static load C0r | 6600 N |
| Designation of rubber interliner | RABR47/52 |
| Designation of bearing | RAE20-NPP-B-FA106 |
| Weight | 0.2 kg |
