SKU: RABRB50/100-FA106-INA

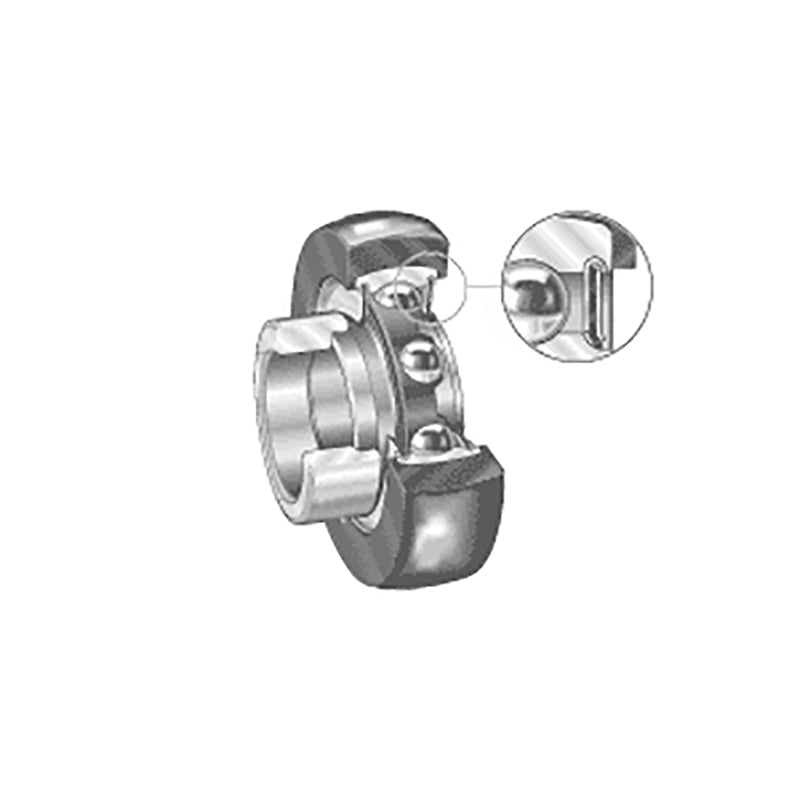

INA RABRB50/100XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 50x100.2x47.7mm
INA RABRB50/100XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 50x100.2x47.7mm
Regular price
CHF 36.66
ex VAT
Regular price
Sale price
CHF 36.66
ex VAT
In stock
Price Break
10+
CHF 32.63
19+
CHF 30.79
29+
CHF 30.43
39+
CHF 30.06
49+
CHF 29.69
74+
CHF 29.33
99+
CHF 27.50
199+
CHF 27.13
249+
CHF 26.76
499+
CHF 26.40
999+
CHF 25.66
Couldn't load pickup availability
Description
Description
|
INA RABRA and RABRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 100.2mm
- Width:
- 47.7mm
- Type:
- Spherical Outer
Technical
Technical
| d | 50mm |
|---|---|
| D | 100.2mm |
| B2 | 47.7mm |
| B1 | 43.8mm |
| C | 30mm |
| D2 | 80mm |
| d3 max | 69mm |
| S1 | 32.7mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 70 deg |
| Rubber ring: load carrying capacity Cg | 4100 N |
| Dynamic load Cr | 35000 N |
| Static load C0r | 23200 N |
| Designation of rubber interliner | RABR90/100 |
| Designation of bearing | RAE50-NPP-B-FA106 |
| Weight | 0.92 kg |
