INA RALTR20XL Three Bolt Sheet Steel Triangle Housing with Eccentric Collar Insert 20mm Bore
INA RALTR20XL Three Bolt Sheet Steel Triangle Housing with Eccentric Collar Insert 20mm Bore
Regular price
CHF 25.00
ex VAT
Regular price
Sale price
CHF 25.00
ex VAT
In stock
Price Break
4+
CHF 19.67
9+
CHF 18.56
19+
CHF 18.34
29+
CHF 18.12
39+
CHF 17.90
49+
CHF 17.68
59+
CHF 16.58
69+
CHF 16.35
79+
CHF 16.13
89+
CHF 15.91
99+
CHF 15.47
Description
Description
|
INA 3 Bolt Triangular Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft. The housings are screw mounted on the adjacent construction. Benefits: Suitable for a lightweight construction, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Style:
- RALTR
- Pitch Circle Diameter:
- 71.5mm

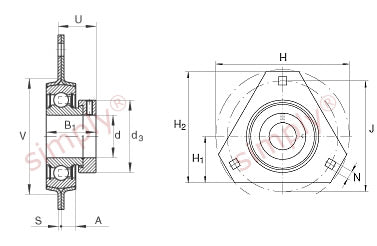

Technical
Technical
| d | 20mm |
|---|---|
| H | 90.5mm |
| B1 | 24.5mm |
| A | 7.2mm |
| d3 max | 30mm |
| H1 | 33.3mm |
| H2 | 76.2mm |
| J | 71.5mm |
| N | 8.7mm |
| S1 | 2mm |
| U | 20.6mm |
| V | 49mm |
| Mass | 0.21 kg |
| Load carrying capacity of housing Cor G | 2600 N |
| Basic dynamic load rating Cr | 500000 N |
| Basic static load rating Cor | 5000 N |
| Designation of housing | FLAN42-LSTR (2 X) |
| Designation of bearing | RALE20-XL-NPP-B |
