SKU: RAPR3-320-AK-RSB

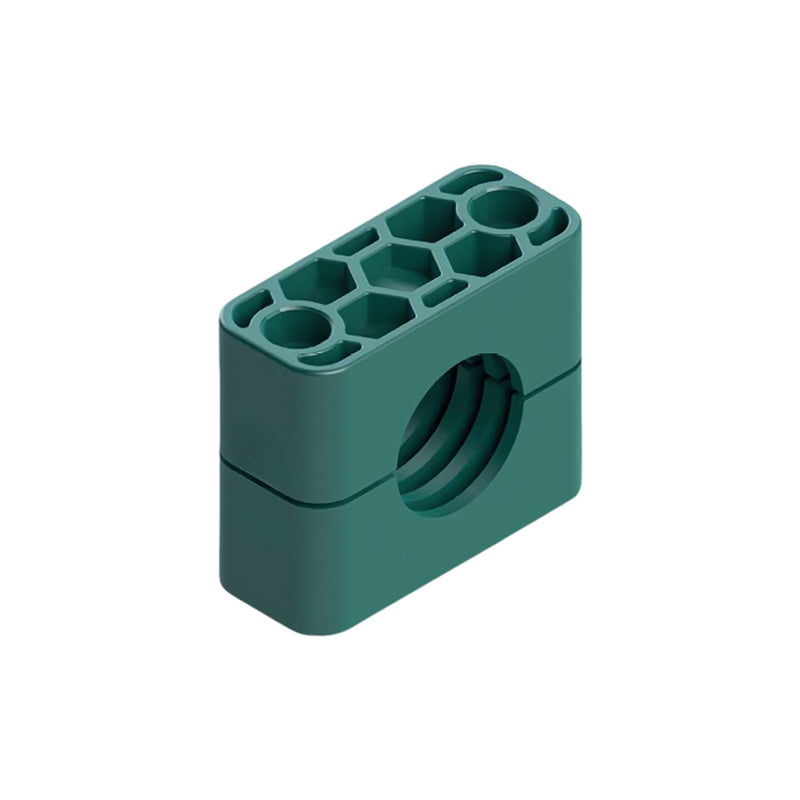

RSB Complete Hose Clamp Suitable for Hoses with 20mm Diameter - Allow 2-3 Days
RSB Complete Hose Clamp Suitable for Hoses with 20mm Diameter - Allow 2-3 Days
Regular price
CHF 7.00
ex VAT
Regular price
Sale price
CHF 7.00
ex VAT
In stock
Price Break
3+
CHF 5.58
5+
CHF 5.27
9+
CHF 5.21
19+
CHF 5.14
49+
CHF 5.08
74+
CHF 5.02
99+
CHF 4.70
199+
CHF 4.64
249+
CHF 4.58
499+
CHF 4.52
999+
CHF 4.39
Description
Description
RSB Complete Hose Clamp: These clamps are a versatile and durable solution, designed for securing hoses with diameters ranging from 8mm to 25mm. Suitable for a wide range of industrial applications, including hydraulic systems, these clamps meet DIN 3015 standards for tube clamping. Offering reliable performance and easy installation, they ensure a secure and leak-free connection, making them ideal for high-pressure environments where safety and stability are essential.
Benefits: Versatile fit, easy installation, reliable performance
- Brand / Quality:
- RSB - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 50mm
- Width:
- 30mm
- Height:
- 45mm
- Length:
- 48mm
- Material:
- Mild Steel / Polypropylene
- Bolt Hole Centres:
- 33mm
Technical
Technical
| Inside Diameter (Hose Size) | 20mm |
|---|---|
| Overall Width | 30mm |
| Weld Plate Diameter (A) | 50mm |
| Body Diameter (B) | 49mm |
| Cover Plate (C) | 48mm |
| Weld Plate Thickness (D) | 3mm |
| Base to Bore Height (E) | 20.5mm |
| Height Without Screws (F) | 41mm |
| Overall Height (G) | 45mm |
| Bolt Hole Centres (H) | 33mm |
| Body Code | RAPR-320 |
| Body Material | Polypropylene |
| Weld Plate Code | APK-A3 |
| Weld Plate Material | Mild Steel |
| Cover Plate Code | DP-A3 |
| Cover Plate Material | Mild Steel |
| Bolt Kit | SSL-A3 |
| Weight | 1.12 kg |
