SKU: RATY35-XL-INA

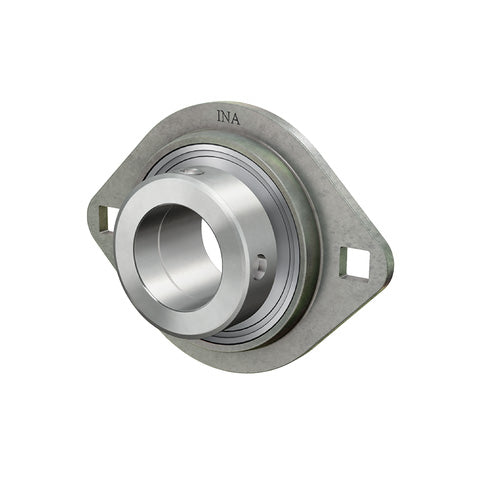

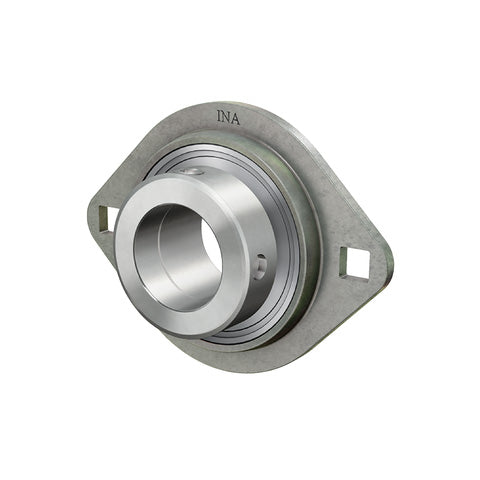

INA RATY35XL Two Bolt Sheet Steel Oval Housing with Grub Screw Insert 35mm Bore
INA RATY35XL Two Bolt Sheet Steel Oval Housing with Grub Screw Insert 35mm Bore
Regular price
CHF 35.00
ex VAT
Regular price
Sale price
CHF 35.00
ex VAT
In stock
Price Break
4+
CHF 27.68
9+
CHF 26.12
19+
CHF 25.81
29+
CHF 25.50
39+
CHF 25.19
49+
CHF 24.88
59+
CHF 23.33
69+
CHF 23.01
79+
CHF 22.70
89+
CHF 22.39
99+
CHF 21.77
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft. The housings are screw mounted on the adjacent construction. Benefits: Suitable for a lightweight construction, grub screw fixing, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Style:
- RATY
- Bolt Hole Centres:
- 100mm
Technical
Technical
| d | 35mm |
|---|---|
| H | 123mm |
| U | 28mm |
| A | 10.5mm |
| B | 35mm |
| J | 100mm |
| L | 93.7mm |
| N | 10.5mm |
| S | 2.5mm |
| V | 81mm |
| Mass | 0.56 kg |
| Load carrying capacity of housing Cor G | 6300 N |
| Basic dynamic load rating Cr | 27500 N |
| Basic static load rating Cor | 15300 N |
| Designation of housing | FLAN72-MST (2 X) |
| Designation of bearing | GAY35-XL-NPP-B |
