SKU: RAX417-MB

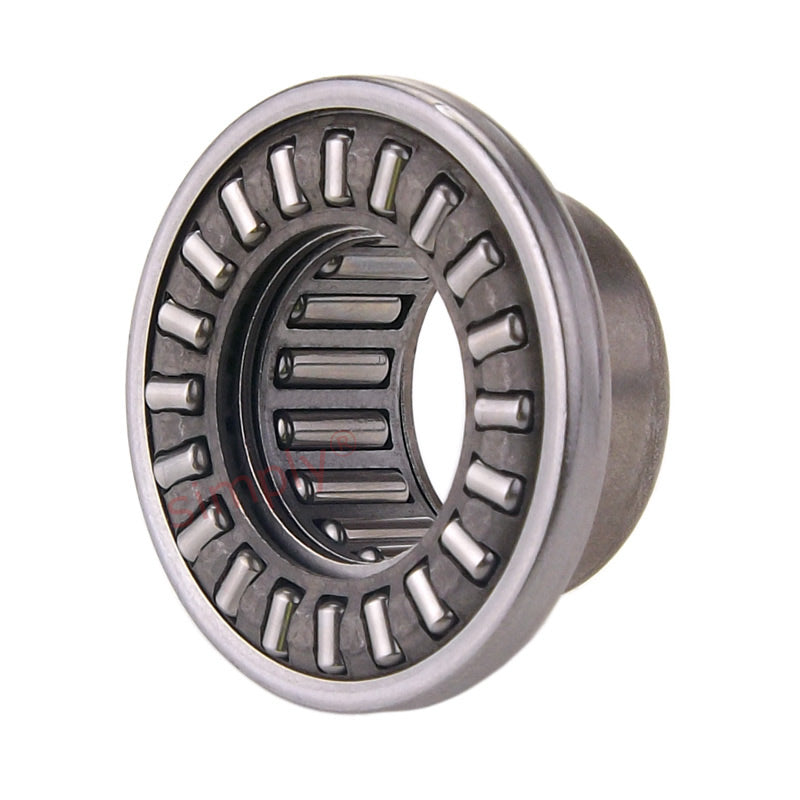

Major Brand RAX 417 Needle Combined Bearing with Needle Thrust Cage 17x26x21mm Allow 2-3 Days
Major Brand RAX 417 Needle Combined Bearing with Needle Thrust Cage 17x26x21mm Allow 2-3 Days
Regular price
CHF 258.00
ex VAT
Regular price
Sale price
CHF 258.00
ex VAT
In stock
Price Break
10+
CHF 205.51
19+
CHF 193.96
29+
CHF 191.66
39+
CHF 189.35
49+
CHF 187.04
74+
CHF 184.73
99+
CHF 173.18
199+
CHF 170.87
249+
CHF 168.56
499+
CHF 166.26
999+
CHF 161.64
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 21mm
- Width:
- 26mm
Technical
Technical
| Fw | 17mm |
|---|---|
| C | 21mm |
| D | 26mm |
| Da | 30mm |
| Eb | 19mm |
| Ea | 26.6mm |
| C1 | 5mm |
| C2 | 8mm |
| rs min | 0.65mm |
| Radial dynamic load | 11.8 kN |
| Radial static load | 16.3 kN |
| Axial dynamic load | 8.1 kN |
| Axial static load | 23 kN |
| Speed rating | 10500 rpm |
| Inner ring | JR 14x17x17 kN |
| Weight | 0.041 kg |
