SKU: RAX425-MB

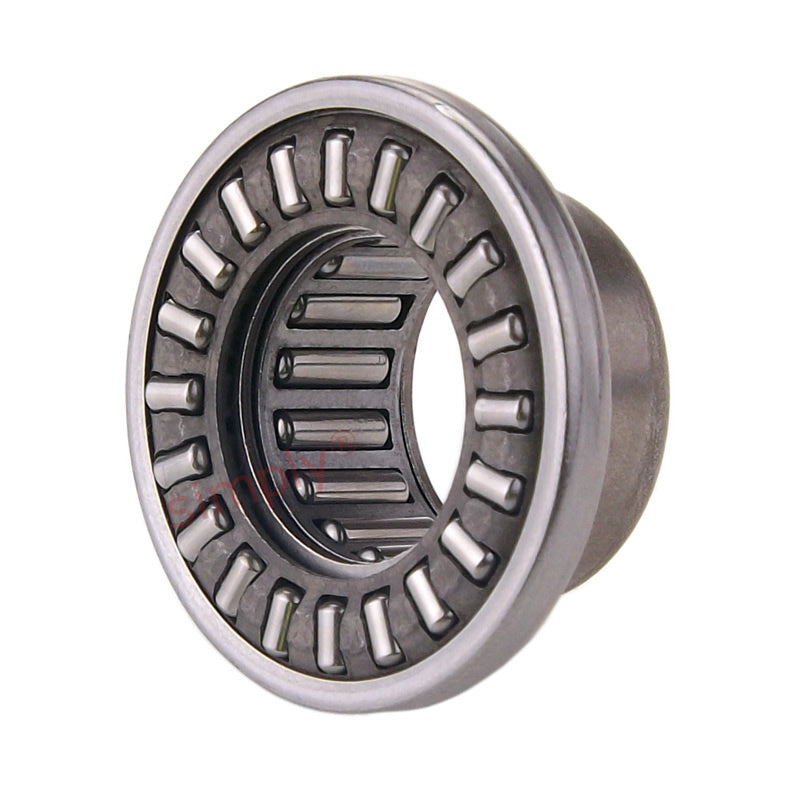

Major Brand RAX 425 Needle Combined Bearing with Needle Thrust Cage 25x37x24mm Allow 2-3 Days
Major Brand RAX 425 Needle Combined Bearing with Needle Thrust Cage 25x37x24mm Allow 2-3 Days
Regular price
CHF 148.50
ex VAT
Regular price
Sale price
CHF 148.50
ex VAT
In stock
Price Break
10+
CHF 132.17
19+
CHF 124.74
29+
CHF 123.26
39+
CHF 121.77
49+
CHF 120.29
74+
CHF 118.80
99+
CHF 111.38
199+
CHF 109.89
249+
CHF 108.41
499+
CHF 106.92
999+
CHF 103.95
Couldn't load pickup availability
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 24mm
- Width:
- 37mm
Technical
Technical
| Fw | 25mm |
|---|---|
| C | 24mm |
| D | 37mm |
| Da | 42mm |
| Eb | 27.7mm |
| Ea | 37.4mm |
| C1 | 6mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 15.1 kN |
| Radial static load | 26.2 kN |
| Axial dynamic load | 13.3 kN |
| Axial static load | 49 kN |
| Speed rating | 7500 rpm |
| Inner ring | JR 20x25x20 kN |
| Weight | 0.099 kg |
