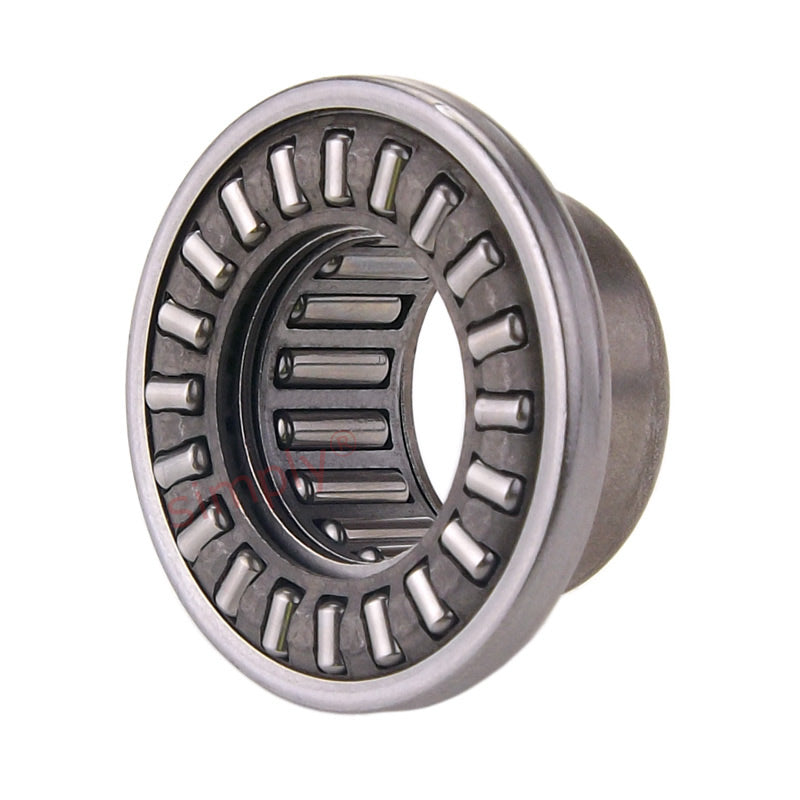

Major Brand RAX 450 Needle Combined Bearing With Needle Thrust Cage 50x62x27mm
Major Brand RAX 450 Needle Combined Bearing With Needle Thrust Cage 50x62x27mm
Regular price
CHF 124.00
ex VAT
Regular price
Sale price
CHF 124.00
ex VAT
In stock
Price Break
10+
CHF 98.30
19+
CHF 92.78
29+
CHF 91.67
39+
CHF 90.57
49+
CHF 89.46
74+
CHF 88.36
99+
CHF 82.84
199+
CHF 81.73
249+
CHF 80.63
499+
CHF 79.52
999+
CHF 77.32
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 27mm
- Width:
- 62mm
Technical
Technical
| Fw | 50mm |
|---|---|
| C | 27mm |
| D | 62mm |
| Da | 70mm |
| Eb | 53.3mm |
| Ea | 65.7mm |
| C1 | 6mm |
| C2 | 11mm |
| rs min | 1.3mm |
| Radial dynamic load | 30.2 kN |
| Radial static load | 68.5 kN |
| Axial dynamic load | 22.5 kN |
| Axial static load | 118 kN |
| Speed rating | 4000 rpm |
| Inner ring | JR 45x50x25 kN |
| Weight | 0.205 kg |
