SKU: RAX460-MB

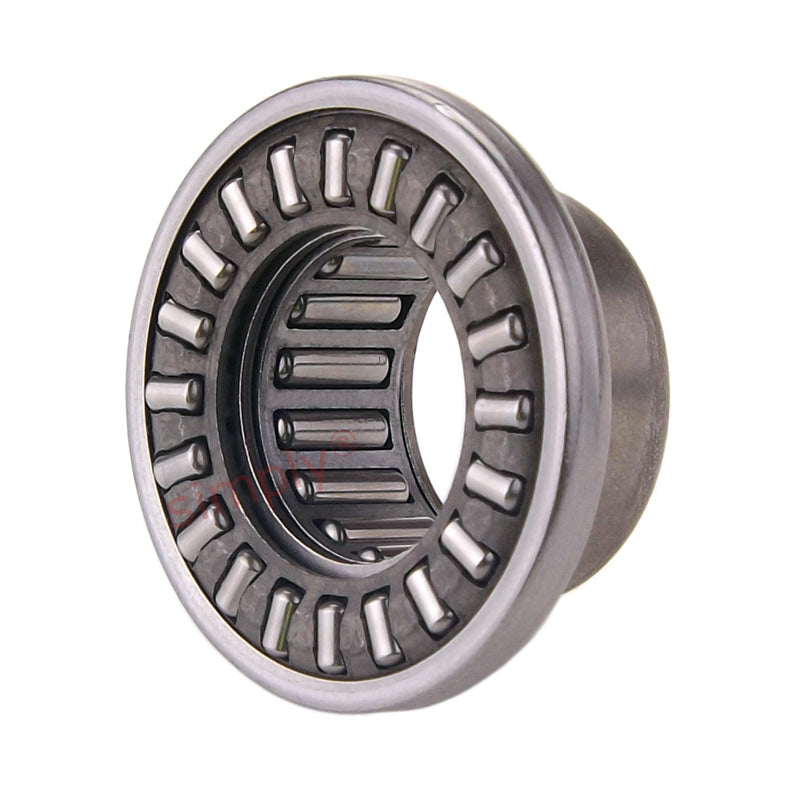

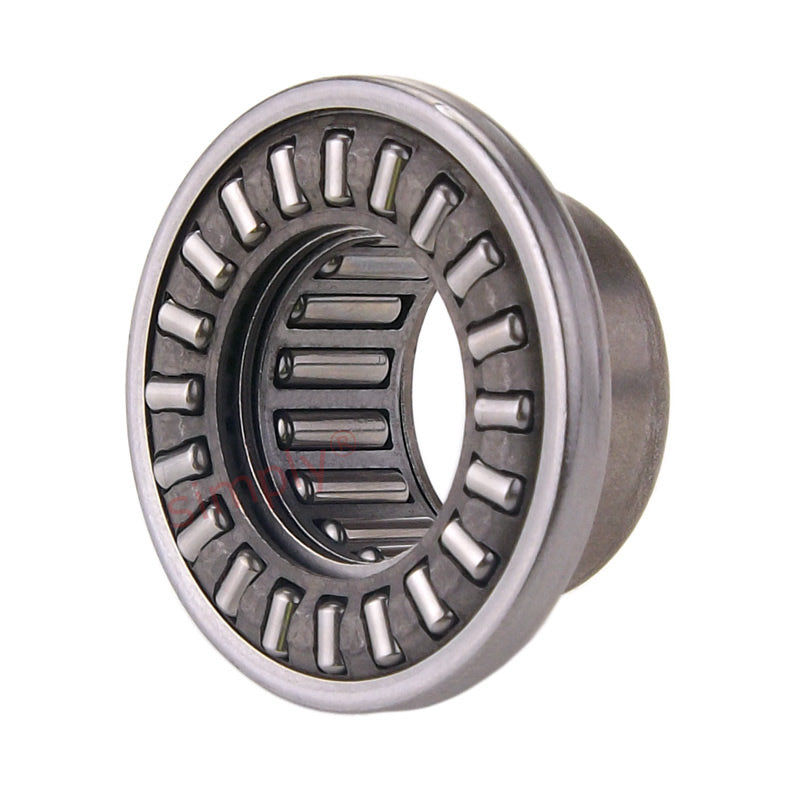

Major Brand RAX 460 Needle Combined Bearing with Needle Thrust Cage 60x72x28mm Allow 2-3 Days
Major Brand RAX 460 Needle Combined Bearing with Needle Thrust Cage 60x72x28mm Allow 2-3 Days
Regular price
CHF 569.00
ex VAT
Regular price
Sale price
CHF 569.00
ex VAT
In stock
Price Break
10+
CHF 453.00
19+
CHF 427.55
29+
CHF 422.46
39+
CHF 417.37
49+
CHF 412.28
74+
CHF 407.19
99+
CHF 381.74
199+
CHF 376.65
249+
CHF 371.56
499+
CHF 366.47
999+
CHF 356.29
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 28mm
- Width:
- 72mm
Technical
Technical
| Fw | 60mm |
|---|---|
| C | 28mm |
| D | 72mm |
| Da | 85mm |
| Eb | 63.5mm |
| Ea | 79.2mm |
| C1 | 7mm |
| C2 | 11mm |
| rs min | 1.3mm |
| Radial dynamic load | 31.9 kN |
| Radial static load | 78.1 kN |
| Axial dynamic load | 31.5 kN |
| Axial static load | 193 kN |
| Speed rating | 3500 rpm |
| Inner ring | JR 55x60x25 kN |
| Weight | 0.282 kg |
