SKU: RAX525-MB

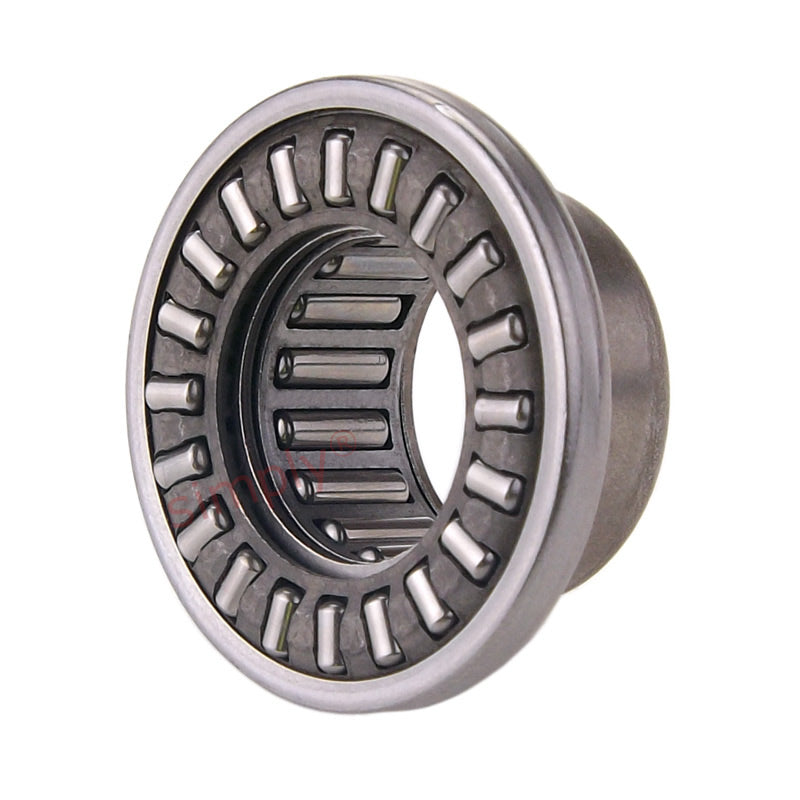

Major Brand RAX 525 Needle Combined Bearing with Needle Thrust Cage 25x37x26mm Allow 2-3 Days
Major Brand RAX 525 Needle Combined Bearing with Needle Thrust Cage 25x37x26mm Allow 2-3 Days
Regular price
CHF 339.00
ex VAT
Regular price
Sale price
CHF 339.00
ex VAT
In stock
Price Break
10+
CHF 269.62
19+
CHF 254.47
29+
CHF 251.44
39+
CHF 248.41
49+
CHF 245.38
74+
CHF 242.35
99+
CHF 227.20
199+
CHF 224.17
249+
CHF 221.14
499+
CHF 218.12
999+
CHF 212.06
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 26mm
- Width:
- 37mm

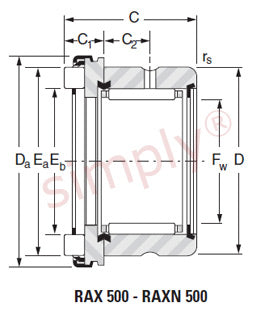

Technical
Technical
| Fw | 25mm |
|---|---|
| C | 26mm |
| D | 37mm |
| Da | 42mm |
| Eb | 27.7mm |
| Ea | 37.4mm |
| C1 | 8mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 15.1 kN |
| Radial static load | 26.2 kN |
| Axial dynamic load | 25.5 kN |
| Axial static load | 70 kN |
| Speed rating | 7500 rpm |
| Inner ring | JR 20x25x20 kN |
| Weight | 0.105 kg |
