SKU: RAX705-MB
Major Brand RAX 705 Open Needle Thrust Bearing 5x9x11mm Allow 2-3 Days
Major Brand RAX 705 Open Needle Thrust Bearing 5x9x11mm Allow 2-3 Days
Regular price
CHF 56.00
ex VAT
Regular price
Sale price
CHF 56.00
ex VAT
In stock
Price Break
10+
CHF 44.38
19+
CHF 41.89
29+
CHF 41.39
39+
CHF 40.89
49+
CHF 40.39
74+
CHF 39.89
99+
CHF 37.40
199+
CHF 36.90
249+
CHF 36.40
499+
CHF 35.90
999+
CHF 34.91
Description
Description
Nadella Combined Needle Roller Bearings : Combined bearings type RAX possess a one piece outer ring formed from thin sheet steel accurately controlled and hardened by suitable heat treatment. The shape of this outer ring prevents weakness in the area between the axial component and the radial component, even after the latter has been tightly fitted into a housing. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 9mm
- Width:
- 11mm

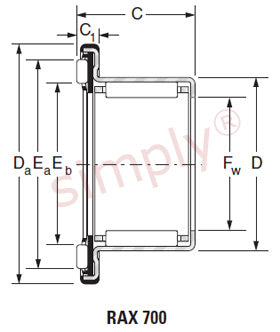

Technical
Technical
| Fw | 5mm |
|---|---|
| D | 9mm |
| C | 11mm |
| Da | 15.5mm |
| Eb | 7.2mm |
| Ea | 11.2mm |
| C1 | 3.3mm |
| L | Radial dynamic load |
| 2.15 | Radial static load |
| 1.95 kN | Axial dynamic load |
| 3.15 kN | Axial static load |
| 6.35 kN | Limit loads radial |
| 0.74 kN | Limit loads axial |
| 3.5 kN | Speed rating |
| 25000 rpm | Housing |
| 9mm | GO plug-gauges |
| 5.009mm | NO-GO plug-gauges |
| 5.036mm | Inner ring |
| Weight | 0.005 kg |
