SKU: RAXN520-MB

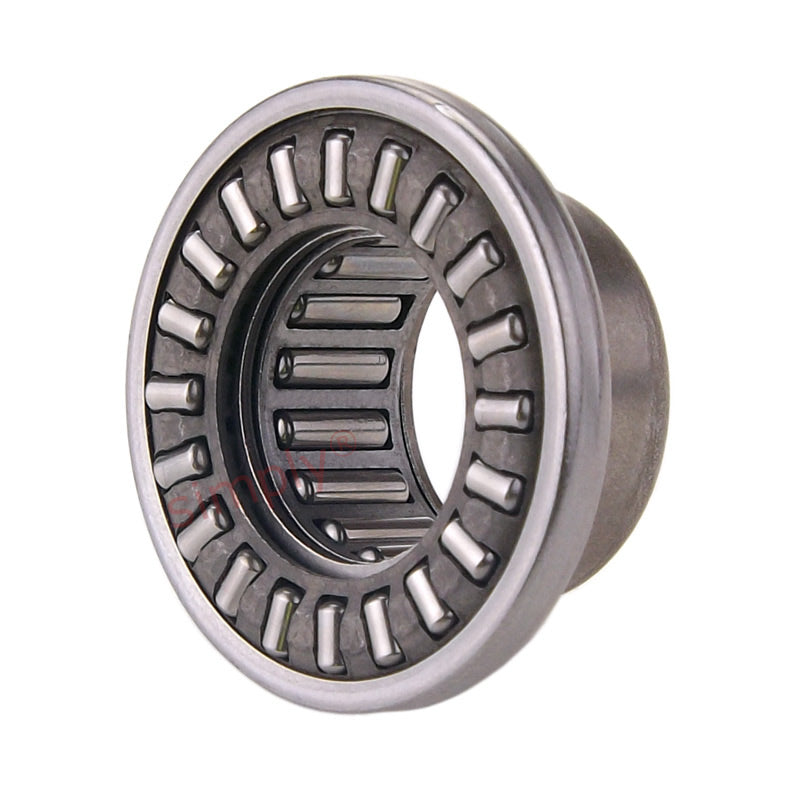

Major Brand RAXN 520 Needle Combined Bearing with Needle Thrust Cage 20x30x26mm Allow 2-3 Days
Major Brand RAXN 520 Needle Combined Bearing with Needle Thrust Cage 20x30x26mm Allow 2-3 Days
Regular price
CHF 426.00
ex VAT
Regular price
Sale price
CHF 426.00
ex VAT
In stock
Price Break
10+
CHF 338.71
19+
CHF 319.68
29+
CHF 315.88
39+
CHF 312.07
49+
CHF 308.27
74+
CHF 304.46
99+
CHF 285.43
199+
CHF 281.63
249+
CHF 277.82
499+
CHF 274.01
999+
CHF 266.40
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 26mm
- Width:
- 30mm
Technical
Technical
| Fw | 20mm |
|---|---|
| C | 26mm |
| D | 30mm |
| Da | 35mm |
| Eb | 22mm |
| Ea | 31.6mm |
| C1 | 8mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 14.8 kN |
| Radial static load | 23.7 kN |
| Axial dynamic load | 22 kN |
| Axial static load | 54 kN |
| Speed rating | 9000 rpm |
| Inner ring | JR 17x20x20 kN |
| Weight | 0.07 kg |
