SKU: RAXPZ410-MB
Major Brand RAXPZ 410 Combined Bearing with Incorporated Thrust Plate 10x19x21mm Allow 2-3 Days
Major Brand RAXPZ 410 Combined Bearing with Incorporated Thrust Plate 10x19x21mm Allow 2-3 Days
Regular price
CHF 134.00
ex VAT
Regular price
Sale price
CHF 134.00
ex VAT
In stock
Price Break
10+
CHF 106.48
19+
CHF 100.50
29+
CHF 99.30
39+
CHF 98.10
49+
CHF 96.91
74+
CHF 95.71
99+
CHF 89.73
199+
CHF 88.53
249+
CHF 87.34
499+
CHF 86.14
999+
CHF 83.75
Description
Description

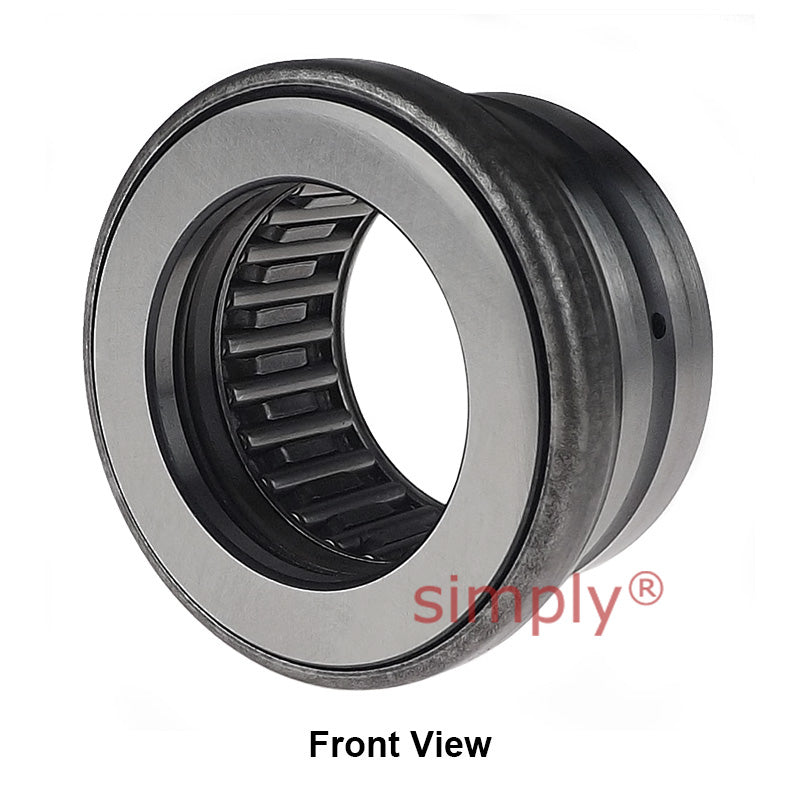

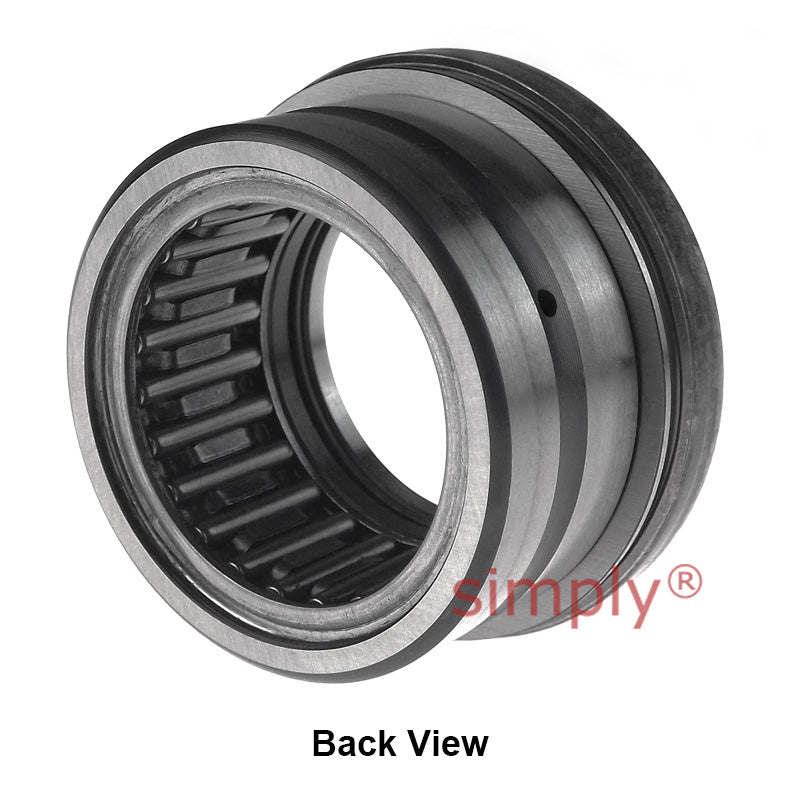

Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 19mm
- Width:
- 21mm
Technical
Technical
| Fw | 10mm |
|---|---|
| D | 19mm |
| C | 21mm |
| da | 10mm |
| Da | 22.4mm |
| C1 | 7mm |
| C2 | 6mm |
| rs min | 0.35mm |
| Radial dynamic load | 5.9 kN |
| Radial static load | 7.2 kN |
| Axial dynamic load | 5 kN |
| Axial static load | 10.9 kN |
| Speed rating | 15500 rpm |
| Weight | 0.029 kg |
